C88-REFERENCE studijos monitorius - Digital Audio

KS Digital
1720

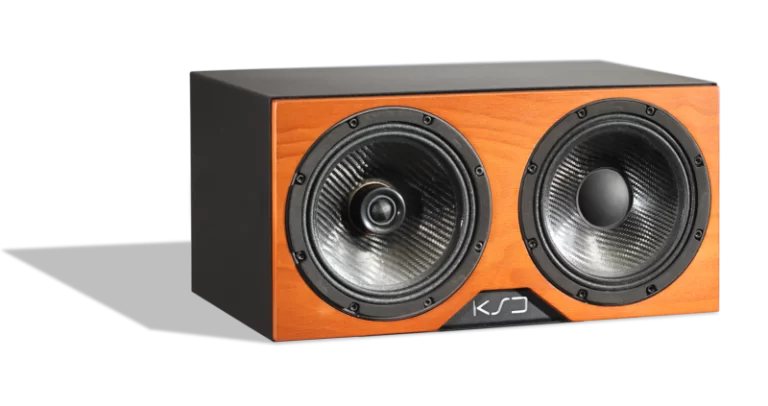

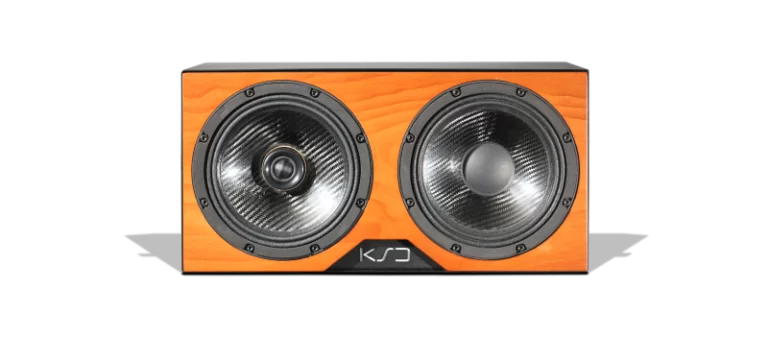

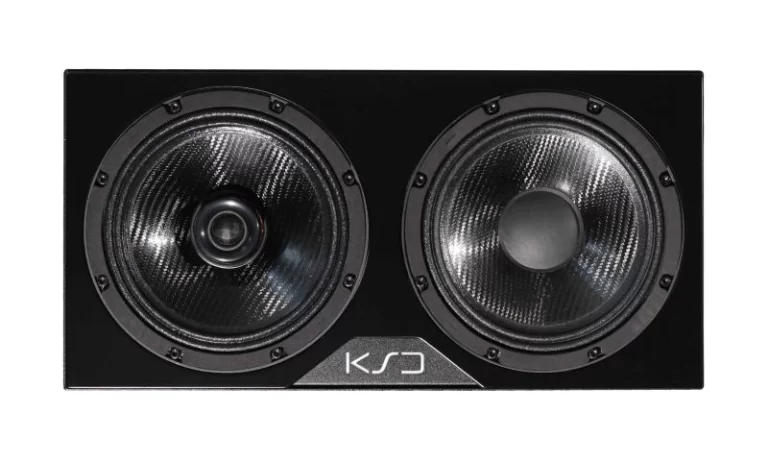

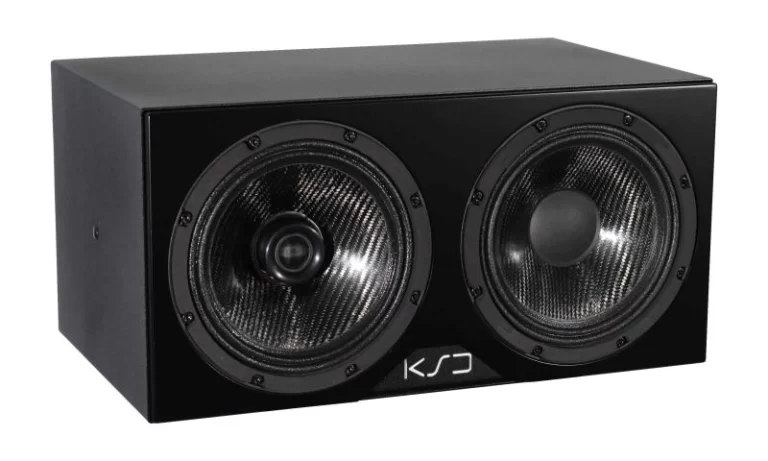

The C88 Reference has been developed as a main monitor but can be utilized at very low listening distances (from approx. 1 meter) due to its coaxial chassis. The additional bass chassis serves the lowest octave and relieves the coaxial chassis in that range. The carbon fibre membrane of the newly developed 8" coaxial chassis prevents the usual break-out of the conus up to higher frequencies, while being extremely light-weight at the same time. The 1" self-manufactured tweeter offers lowest harmonic distortion with maximum neutrality. Placed just in front of the 8" chassis, the specially constructed conus, leads to an optimised radiation behaviour and prevents an unstable sound image, as even with higher volumes the hub of the bass chassis doesn’t influence the radiation behaviour of the tweeter.
C88-REFERENCE studijos monitorius

Techninė specifikacija

Construction
3-way-coax, nearfild

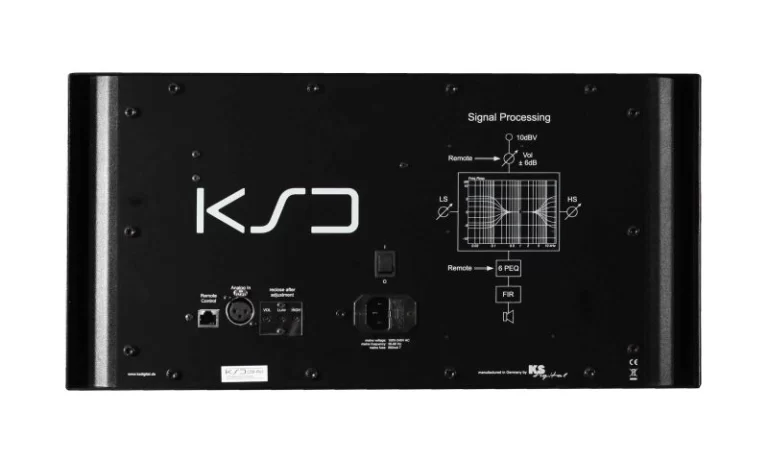

Signalprocessing in
FIRTEC™ equalization, FIR

FPGA
crossover

With 24 Bit ADC
limiter, 6 User-EQ, patent

DAC
19823110

Tweeter
1“ neodym

Bass/mid driver
8“ carbon

Bass driver
8“ carbon

Amplifier
80 W / 175 W /175 W

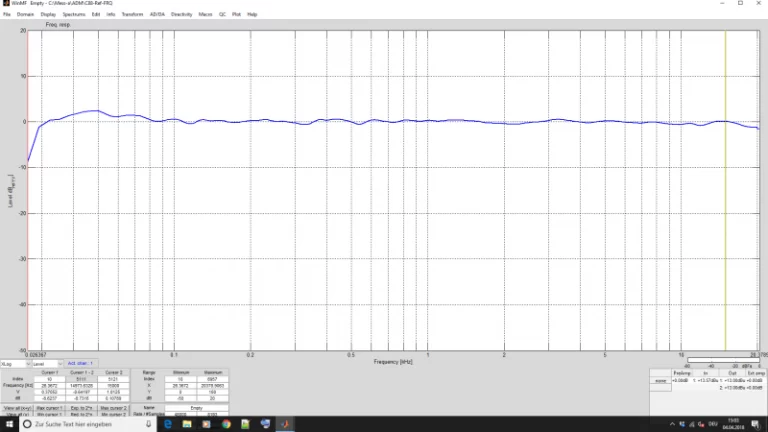

Frequency range
32 - 22000 Hz

Weight
22kg

Dimensions
480 x 240 x 310 mm

C88-REFERENCE studijos monitorius
