Studijos monitorius C8-REFERENCE

KS Digital
1215

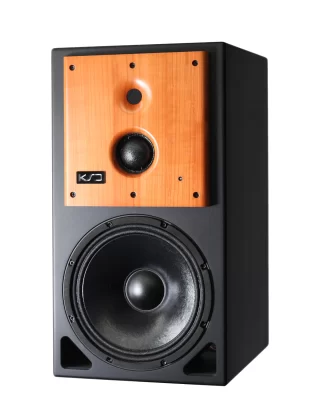

As a genuine midfield monitor the C8 Reference allows a listening distance from approx. 50cm up to several meters. The available performance in combination with cabinet volume and the newly developed high-performance chassis offers the sound engineer a full-range, main monitor for small to medium size areas.  In this way, a sub-woofer is unnecessary to control the entire frequency range.  The special form of the rear-directed bass reflex port prevents audible air turbulence. The carbon fibre membrane of the newly developed 8" coaxial chassis prevents the usual break-out of the conus up to higher frequencies at the same time having an extremely low weight. The 1" self-manufactured tweeter offers the lowest harmonic distortion with a maximum in neutrality. The special coaxial design of the tweeter leads to an optimised radiation behaviour.

Techninė specifikacija

Construction
2-way-coax, nearfild

Signalprocessing in
FIRTEC™ equalization, FIR

FPGA
crossover

With 24 Bit ADC
limiter, 6 user-EQ, patent:

DAC
19823110

Tweeter
1“ neodym

Bass/mid driver
8“ carbon

Amplifier
80 W / 175 W

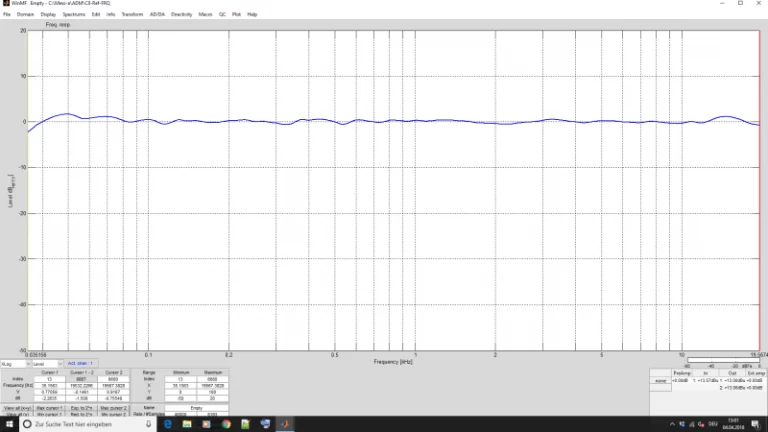

Frequency range
38 - 22000 Hz

Weight
11kg incl. packaging 13 Kg

Dimensions
240 x 290 x 310 mm
