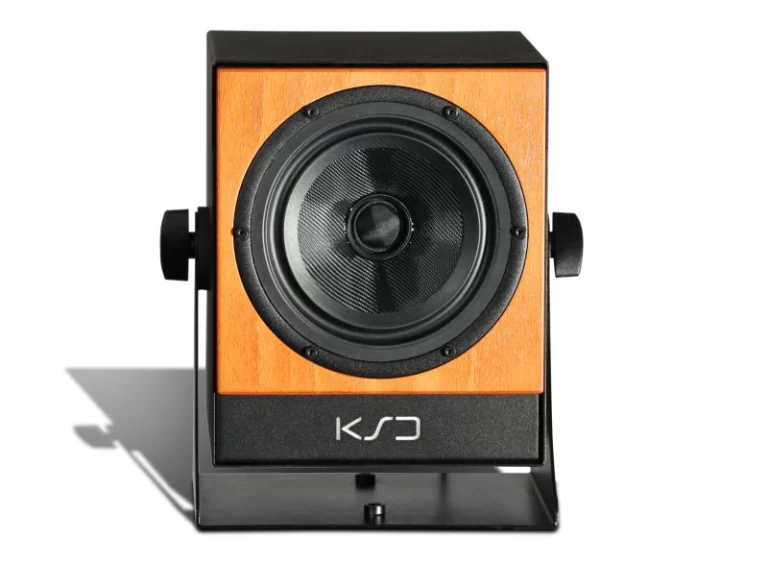

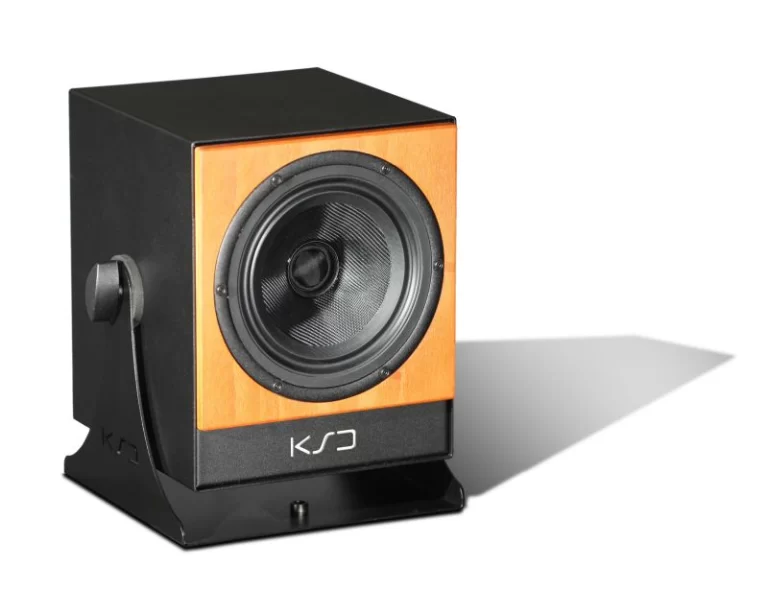

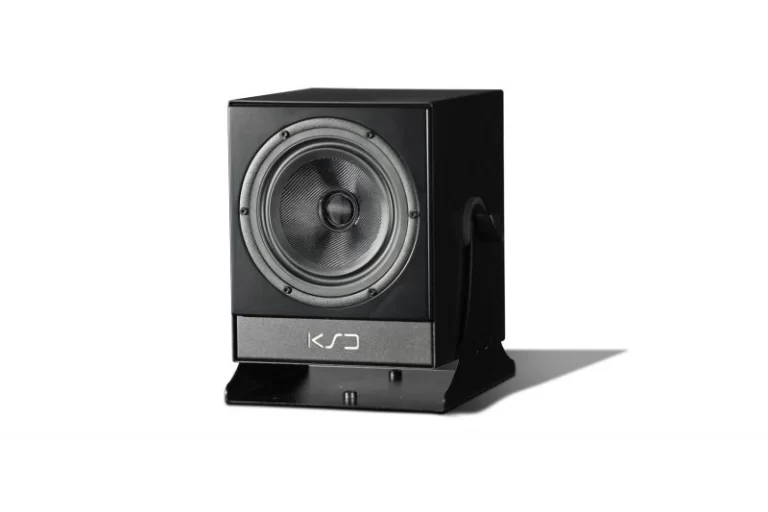

C5-REFERENCE studijos monitorius - Digital Audio

KS Digital
909
For over 10 years, the C-Line has been the compact listening reference in many studios around the world.  One of the main reasons for this is the coaxial principle that delivers exact information to the sound engineer even if the room’s acoustics are not ideal. A coaxial chassis avoids different run-times between bass and high-ranges.  Firstly, this means that one can sit at any distance from the sound source, and secondly, much more direct sound arrives at the listening position than is reflected from the room, which is the ideal solution for smaller listening spaces, transmission vans or in the near field at a DAW workstation.  Additionally, the KSD Reference series has now been fitted with patented Firtec/DSP that not only guarantees neutral tonality but also correctly timed reproduction.  This phase linearity permits the exact positioning of individual instruments in the virtual stereo sound stage, with each instrument precisely positioned.  Six user filters serve to adjust the set-up in one’s own studio.  An optional remote control ("KSD-RC") allows not only the access to the user EQ’s and other parameters like "delay" etc. but also allows simple adjustment of the volume and replaces an external monitor controller (with its signal editing and sound losses). Available with a cherry wood front or in complete black.
C5-REFERENCE studijos monitorius

Techninė specifikacija

construction
2-way-coax, nearfild

signalprocessing in
FIRTEC™ equalization, FIR-

FPGA
crossover,

with 24 Bit ADC
limiter, 6 user-EQ, patent:

DAC
19823110

tweeter
1“ neodym

bass/mid driver
6“ kevlar

amplifier
80 W / 175 W

SPL (max)
115 dB peak/pair

frequency range
48 - 22000 Hz

weight
8kg incl. packaging 10 Kg

dimensions
200 x 245 x 220 mm
