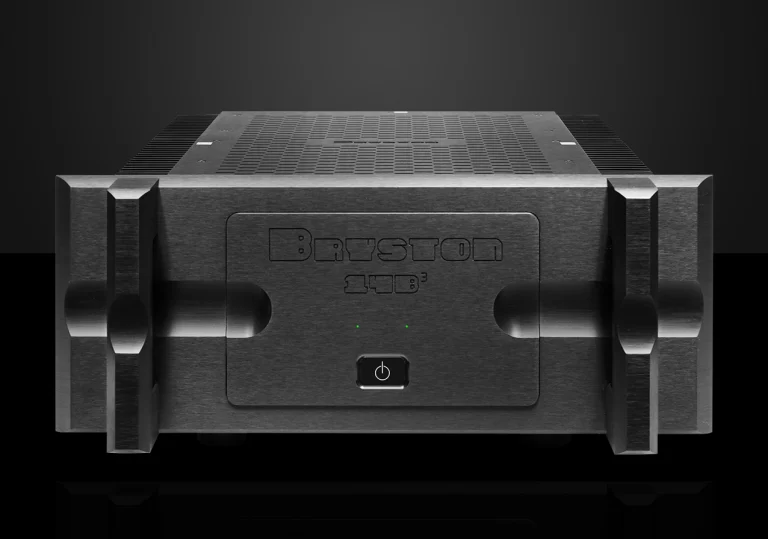

14B³ stereo stiprintuvas

Bryston
10190

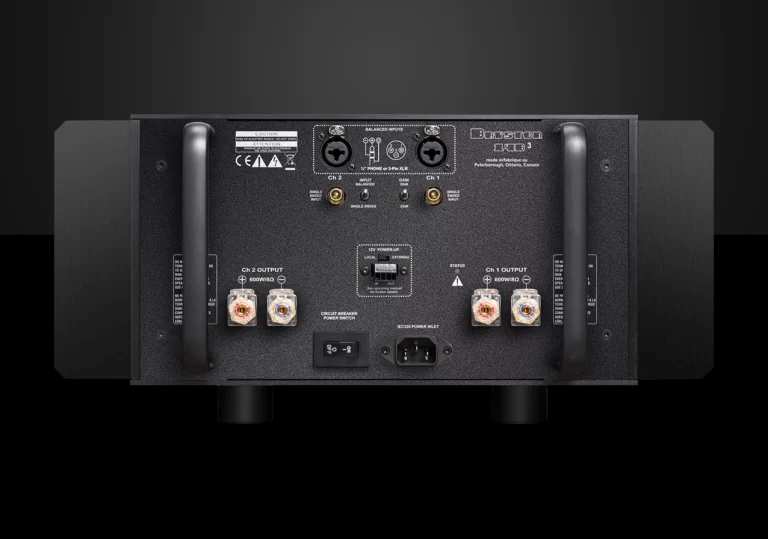

The Bryston 14BSST² dual channel (stereo) amplifier is basically two 7B’s which have been combined in a dual mono modular design and has the power to drive with breathtaking ease and clarity, speakers which have been considered "impossible" loads in the past. Inputs: 2x Balanced Inputs (XLR or TRS), 2x Single Ended Inputs (RCA)

Features


– Balanced and Single Ended audio inputs
– Selectable gain at 23 or 29dB
– No fans or other moving parts
– Regulated power supplies to all voltage gain stages
– Convection cooled and housed in a fully aluminum chassis
– Independent power supplies for each channel
– Energy storage power transformers maximize dynamic range

Techninė specifikacija:

Power Capabilities
600W into 8Ω; 900W into 4Ω

Harmonic Distortion
≤.005% from 20Hz to 20kHz at 600W

Noise below full output
≤ -122 @ full bandwidth

Slew Rate
>60V/µS

Power Bandwidth
<1Hz to >100kHz

Damping Factor
>300 at 20Hz (8Ω)

Switchable Gain
23dB or 29dB
