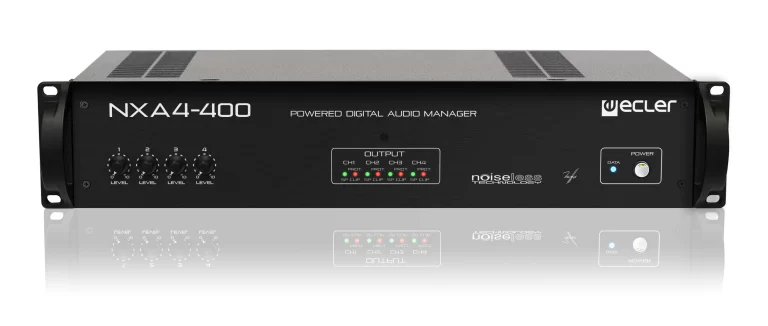

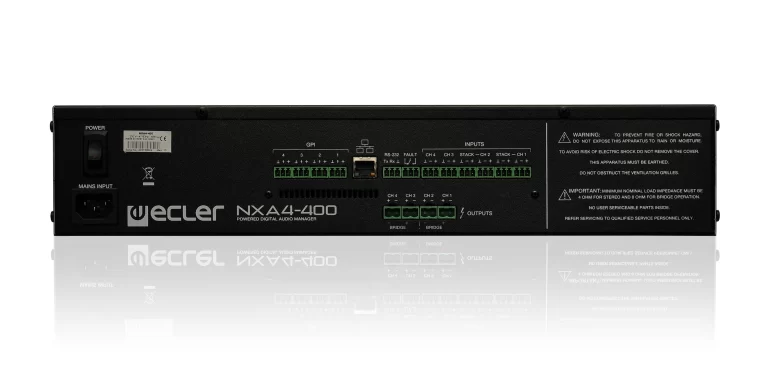

NXA4-400 procesorius su stiprintuvu
Ecler
3722 €
Powered Digital Audio Manager
ECLER NXA4-400 is a 4 channel self-powered digital manager that stays halfway between a digital matrix and a multichannel amplifier. An "all-in-one" digital audio device that becomes a complete audio solution, including several remote control options and a long list of smart features.
Key Features
- 4 analogue audio inputs x 4 powered audio outputs
- Class D amplifiers (eco friendly)
- Auto stand-by function (eco friendly)
- 100% silent (fanless convection cooling system)
- Health self-test mode function, with FAULT RELAY (for an external redundancy system)
- Integrated anti-clip system
- Integrated DSP processor. Main features:
– Inputs mixer independent per channel (all inputs available)
– VOLUME, MUTE, SOLO, PHASE INVERSION, MAX. VOL limit and MIN.VOL limit, LP and HP Crossover filters, parametric EQ filters bank, Ducker, Delay, Compressor and more settings configurable per channel.
– Ethernet interface, compatible with EclerNet Manager platform and UCP remote control system
– TP-NET third-party remote control (compatible with CRESTRON®, AMX®, RTI®, VITY®, etc.)
Power 20Hz-20kHz 1% THD
1 Channel @ 4Ω
426 WRMS
1 Channel @ 8Ω
230 WRMS
All Channels @ 4Ω
330 WRMS
All Channels @ 8Ω
205 WRMS
1 Bridge channel @ 8Ω
760 WRMS
Overall Voltage Gain
+26 / +32 dB
Frequency response (-1dB, -3dB)
10Hz – 25kHz
THD + Noise @ 1kHz Full power
<0.08%
Noise Floor (FFT) 20Hz – 20KHz
>100dB (110dB typ.)
Damping factor 1kHz @ 8Ω
>600
Channel Crosstalk @ 1kHz
>75dB
Input connectors
Terminal block (Symmetrical)
Input CMRR/ref. Max. PWR
>50dB
Signal present indicator
Lit at –40dBV
Output connectors
Terminal block
Anticlip limiter
Soft / Mid / Hard
Volume remote control
(0-10VDC) (0.1A max.) 0V = no attenuation / +10V = full attenuation
Remote control connectors
Terminal block
Power consumption
(pink noise, 1/8 power @ 4ohm)
431VA
(pink noise, 1/3 power @ 4ohm)
948VA
Stand-by mains consumption
<3W
Panel Dimensions
482.6x88mm
Depth (Handles and knobs excluded)
373mm
Weight
15.6kg
Processing
A/D & D/A
24 bit, 48kHz. 115dB AKM Codec
DSP
32/64 bits
Latency
2ms
Analog Input headroom
+18 dBV = +21dBu
Digital Input attenuator
Stepless from –∞ to +0dB
Input Impedance
Balanced, 22kΩ
Maximum Delay
1s (343.4m) for each channel
