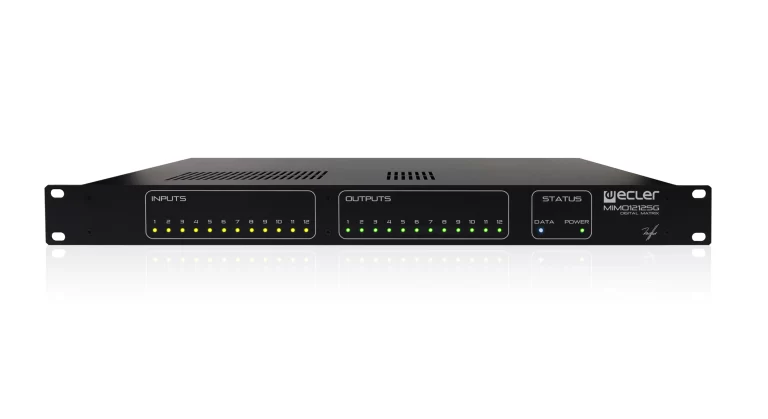

MIMO1212SG procesorius - Digital Audio

Ecler
1648 €

Installation Digital Matrix

ECLER MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix.

Key Features


  • 12×12 digital matrix (not expandable)
  • Fully programmable and controllable via EclerNet software
  • UCP (User Control Panels) remote control system, compatible with WPmSCREEN and third-party devices, such as computers, tablets, smartphones, etc.
  • TP-NET protocol compatible, for third-party control systems integration
  • DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking (priority & overriding), virtual and physical paging stations management, presets save & recovery, scheduled events triggering, etc.
  • FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs

DSP

DSP
2 x 32/64bit

Sampling Rate
48kHz

Latency IN to OUT
<3.2ms

Converters

Resolution
24bit AKM

Dynamic Range
AD:110dB, DA: 115dB

Analogue

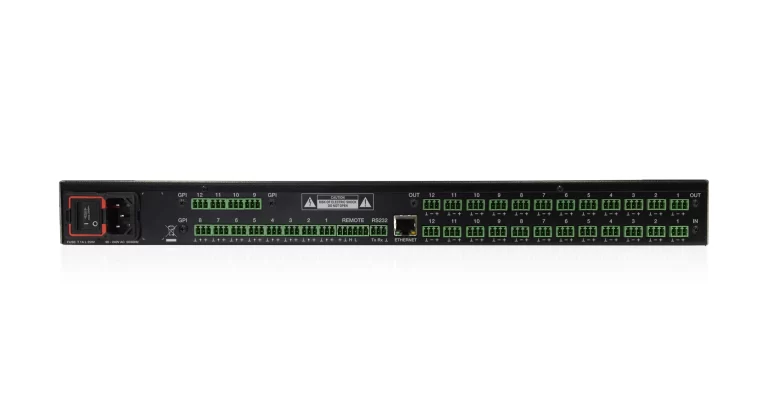

x12 Input/Output
Terminal block (Symmetrical)

Analogue Input headroom
+27dBV = +30dBu

Max. output level
+18dBV = +21dBu

Input sensitivity @ 0dBV out
From -50dBV to +10dBV in 0.5dB step

Input Impedance
Balanced, >4kΩ

Phantom power
+42VDC, 5mA max. software switched

Frequency response (-3dB)
5Hz to 24kHz

Flatness
better than ±0.1dB

THD+Noise @ 1kHz, 0dBV input (line)
<0.004%

THD+Noise @ 1kHz, -40dBV input (mic.)
<0.008%

Output Noise floor FFT (20Hz - 20kHz)
better than 115dB

Interchannel crosstalk (20Hz - 20kHz)
better than 90dB (100dB typ.)

Channel Leakage (20Hz - 20kHz)
better than 100dB (115dB typ.)

CMRR 20Hz- 20kHz
65dB typ

Processing

Input Level (x12)
Range: from Off to 0 dB

Output Level (x12)
Range: from Off to 0 dB

Output Gain (x12)
Range: from 0 to +6 dB

Input Delay (x12)
from 0 to 1000 ms

Output Delay (x12)
from 0 to 1000 ms

High & Low pass output Crossover filters (x12)
Butterworth in 6/12/18/24 dB/oct; Bessel in 12/18/24 dB/oct; Linkwitz-Riley in 12/24 dB/oct

Input Noise Gate (x12)
Threshold: from –80 dBV to +18 dBV; Depth: 0 dB to 80 dB

Input Compressor / Limiter (x12)
Threshold: from –36 dBV to +18 dBV; Ratio: 1:1 to inf:1 (limiter)

Input Frequency Shifter (x4) (Feedback Loop Reducer)
Available on IN1 to IN4. ON / OFF function

Output Limiter (x12)
Threshold: from –36 dBV to +18 dBV

Built in Signal Generator
Sine: from 20 Hz to 20 kHz; Polarity: from 20 Hz to 20 kHz; White noise; Pink noise

Mix Matrix
Size: 12x12; Vol: Input, Output, Crosspoint

Pager (x3)
Input: IN1 to IN12; Priorities: 3 (1max, 3 min); Depth: 0 dB to 80 dB

Mechanical

Dimensions
482.6x44x266.5mm

Weight
3.2kg
