DAM614 procesorius - Digital Audio

Ecler
800 €

Installation Digital Mixer

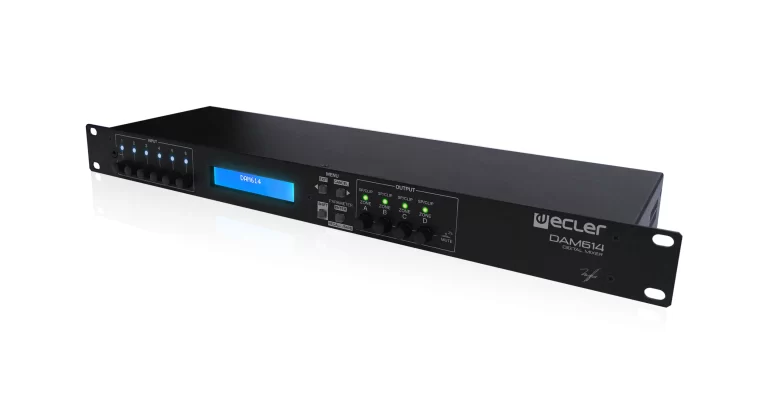

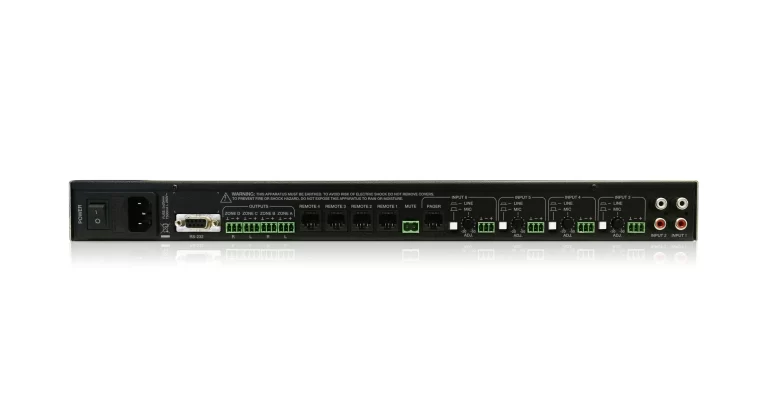

ECLER DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready (phantom available), being possible to use them independently (mono) or as stereo-coupled inputs.

Key Features


  • DSP @ 24 bits / 48kHz

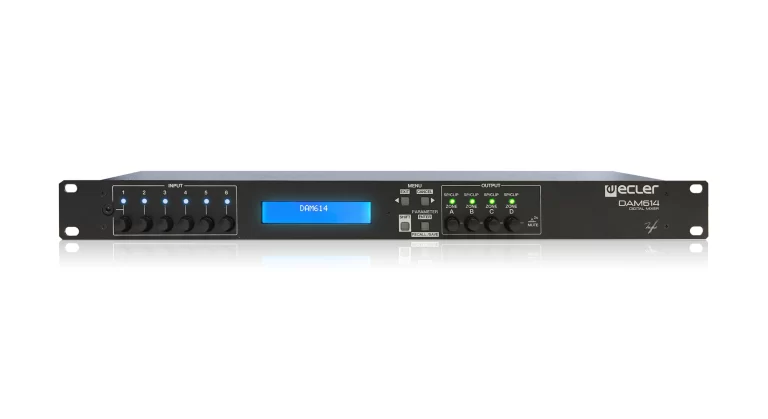

  • Front panel LCD display
  • 6 front panel input control digital knobs (one per input)
  • 4 front panel output control digital knobs (one per output)
  • 4 front panel keys, for parameters adjustment and menus navigation
  • Processing:
    – Independent level control for each input and output
    – Independent mixer for each output zone
    – Crossover filters available for each output
    – Independent 10 band graphic EQ for each output
    – Independent and adjustable High-pass filter available for MIC/LINE inputs
    – 2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs
    – Independent Noise Gate function for MIC/LINE inputs
    – Independent Feedback Suppressor Function for MIC/LINE inputs
    – Adjustable delay time for 2 outputs

INPUT 1, 2 (LINE)

Sensitivity
0 / -6dBV Internal jumper adjust. 0dBV factory default

Input impedance
>13k

Input connector
RCA female

INPUT 3, 4, 5, 6 (MIC)

Sensitivity
-20 / -50dBV External potentiometer adjust

Input impedance
>24k electronically balanced

CMRR
>55dB (20Hz ÷ 20kHz)

Input connector
Terminal block (Symmetrical)

INPUT 3, 4, 5, 6 (LINE)

Sensitivity
0 / -6dBV Internal jumper adjust. 0dBV factory default

Input impedance
>24k electronically balanced

CMRR
>55dB (20Hz ÷ 20kHz)

Input connector
Terminal block (Symmetrical)

ZONE OUTPUTS

Nominal output level
0dBV

Output impedance
300Ω electronically balanced

Output connector
Terminal block (Symmetrical)

Technical

A/D & D/A
24bit / 48kHz

FREQUENCY RESPONSE
<10Hz ~ 20kHz (+0dB/ -0.5dB)

OUTPUT NOISE FLOOR (FFT)
>110dB (from 20Hz to 20kHz)

THD + NOISE
< 0.0058% (1kHz, 1Vrms)

CROSSTALK
>90dB, 20Hz ÷ 20kHz

INPUT EQ

Type
Baxandall 3 ways EQ

Gain
-10dB ~ +10dB in 0.1dB steps

Frequency
Low 200Hz Mid 1kHz High 6.3kHz

INPUT 3, 4, 5, 6 TALKOVER EQ

Type
Assignable to any output zone. 2 priority levels

Modes
Ducker / Pager (only input 6)

Threshold
-80 / +12dBV

Depth
0 ~ 80dB

Attack time
5 ~ 2000ms

Hold time
10 ~ 3000ms

Release time
50 ~ 3000ms

Chime (only input 6)
ON / OFF. Variable volume. Two different melodies

INPUT 3, 4, 5, 6 NOISE GATE

Threshold
80 / +12dBV

Depth
0 ~ 80dB

Attack time
0.1 ~ 500ms

Hold time
10 ~ 3000ms

Release time
10 ~ 1000ms

INPUT 3, 4 OTHER OPTIONS

Feedback supressor
Frequency shifter type

High pass filter (hum & pop suppressor)
50 ~ 150 Hz 12dB/oct Butterworth

ZONE OUTPUT EQ

Type
10 band EQ

Filters
Adaptable Q to achieve maximum flat response

Gain
-10dB ~ +10dB step 0.1dB

Frequencies
31, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz

ZONE OUTPUT DELAY

Delay Time
10 ~ 1000ms (10 ~ 343,4m)

Units
Milliseconds, seconds, centimeters, meters

GENERAL

Mains
90÷264VAC 50/60Hz

Power consumption
20VA

Dimensions WxHxD
482.6x44x120mm

Weight
2.00kg
