BP17³ pradinis stiprintuvas - Digital Audio

Bryston
4490 5540

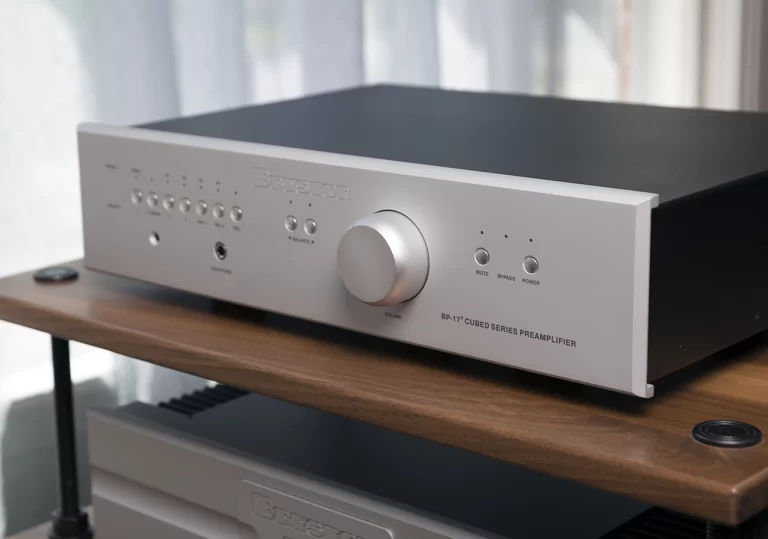

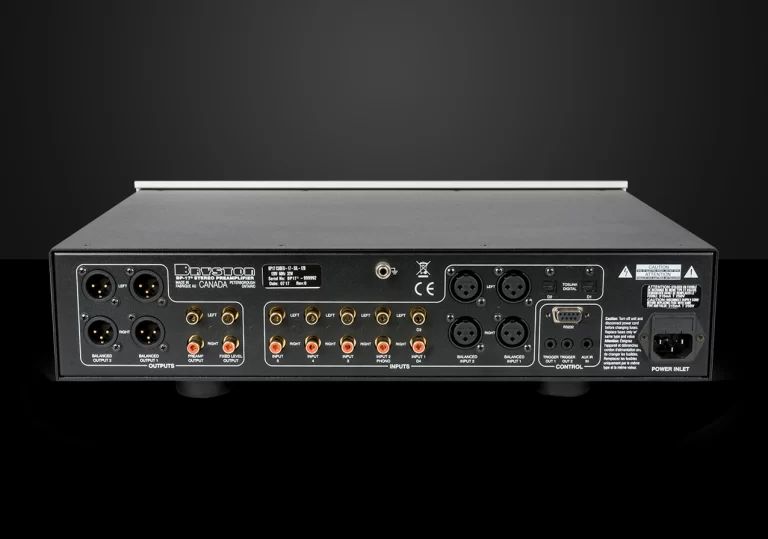

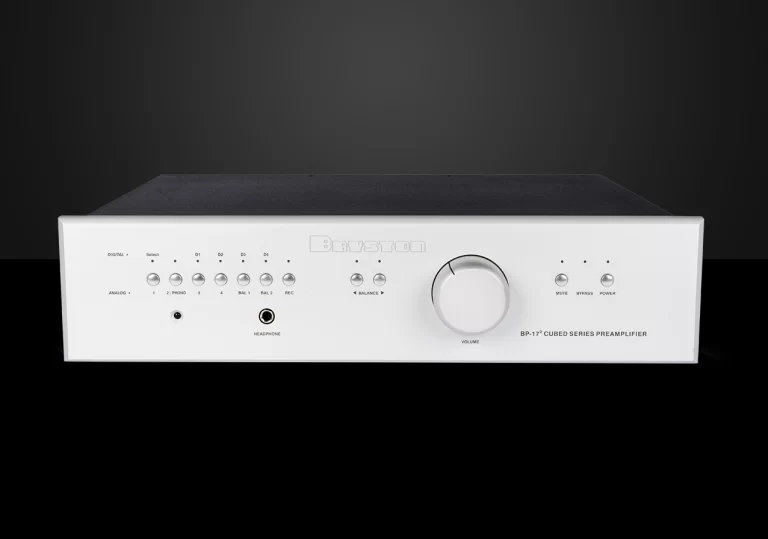

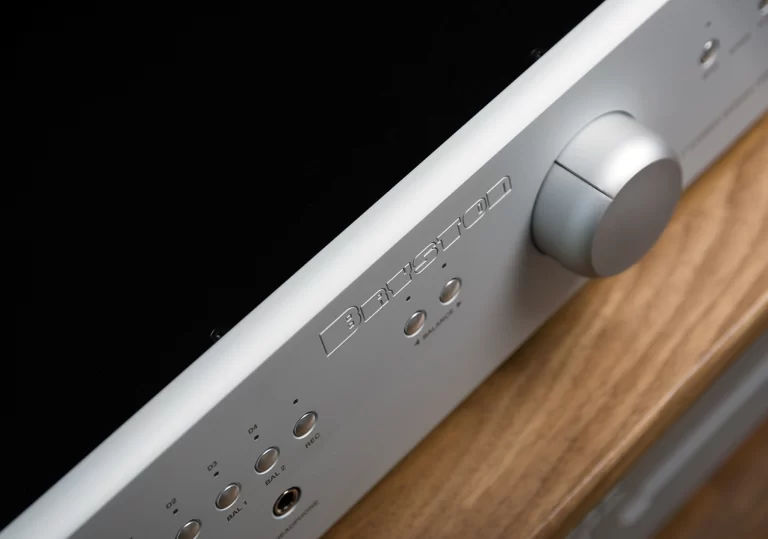

The Bryston BP17³ is a state-of-the-art analog stereo preamplifier, utilizing software control which allows for numerous features and functions. The BP17³ delivers incredible sonic performance while still adhering to traditional, fully discrete, analog circuits throughout the preamplifier. The BP17³ includes the patented Salomie circuit found in all Cubed Series amplifiers and incorporates much of the existing architecture developed for the Bryston B135³ Integrated Amplifier and SP3 Surround Sound Processor. Additionally, new to the BP17³ are two pairs of Balanced (XLR) inputs as well as a pair of balanced outputs which can be configured as either variable or a fixed, allowing compatibility with the BHA-1 Headphone Amplifier (or other balanced input headphone amplifier). Inputs: 2x Balanced Pairs (XLR), 5x Single Ended Pairs (RCA) Outputs: 2x Balanced Pairs (XLR), 2x Single Ended Pairs, ¼” Headphone Jack Control: RS-232 (DB9), IR

Features


– Balanced and Single Ended Inputs and Outputs
– Fully discrete Class A analog circuitry
– The patented Salomie circuit found in all Cubed Series amplifiers
– XLR pair configurable as variable or fixed output (compatibility with the BHA-1)
– Independent power supply and ground paths for analog and digital circuits.
– Relay switching on all inputs
– Programmable pass through feature
– Software control and balanced action volume control

Techninė specifikacija:

Frequency Response
20Hz - 20kHz: ± 0.05dB

THD
1V rms Bal. In/Out: <0.0025%

IMD
≤0.0003%

Noise (<10Hz-20kHz, relative to full output)
RCA IN/OUT: -102 dB; XLR IN/OUT: -108 dB

Input Impedance
Unbalanced: 6.5 kΩ; Balanced (non inverting): 4.5kΩ; Balanced (inverting): 4.5kΩ

Gain
RCA IN / RCA rec out: 0dB; RCA IN / RCA preamp out: 12dB MAX; XLR IN / XLR fixed out: 6dB; XLR IN / XLR preamp out: 18dB

Weight
5 kg

Power Consumption at 120V/60Hz
Standby: 2W; Idle 32 W; Full Power 32 W
