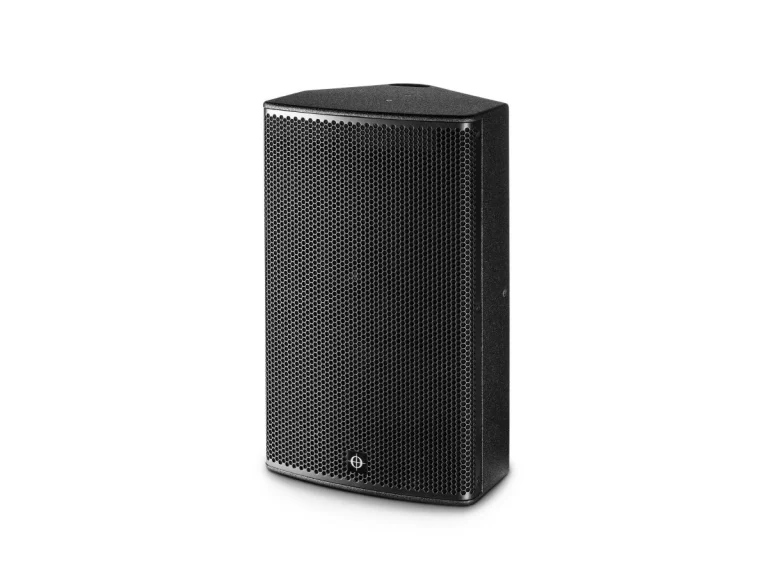

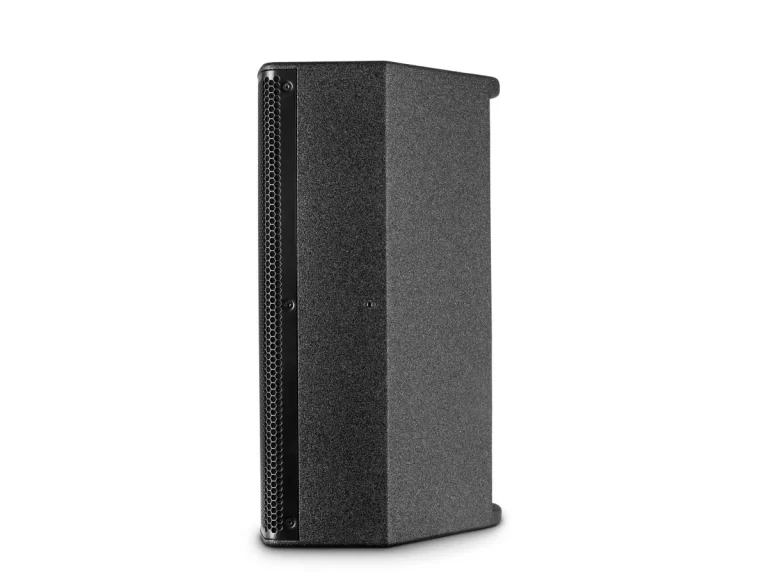

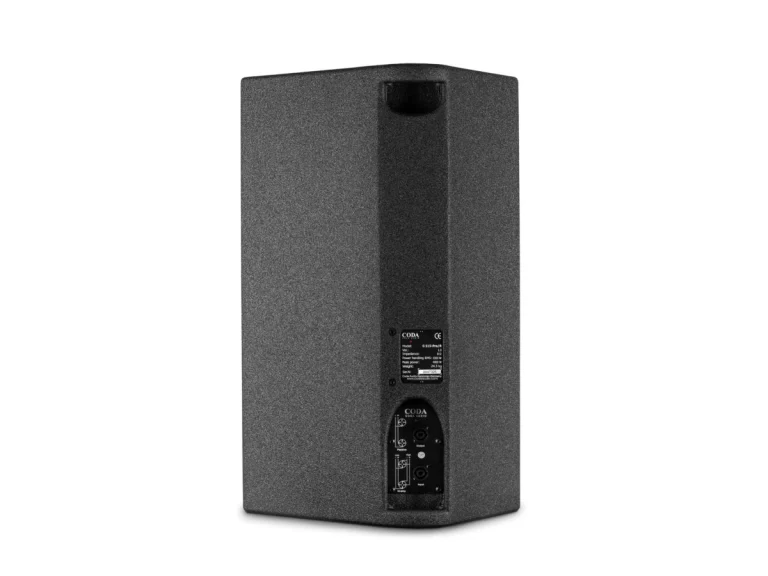

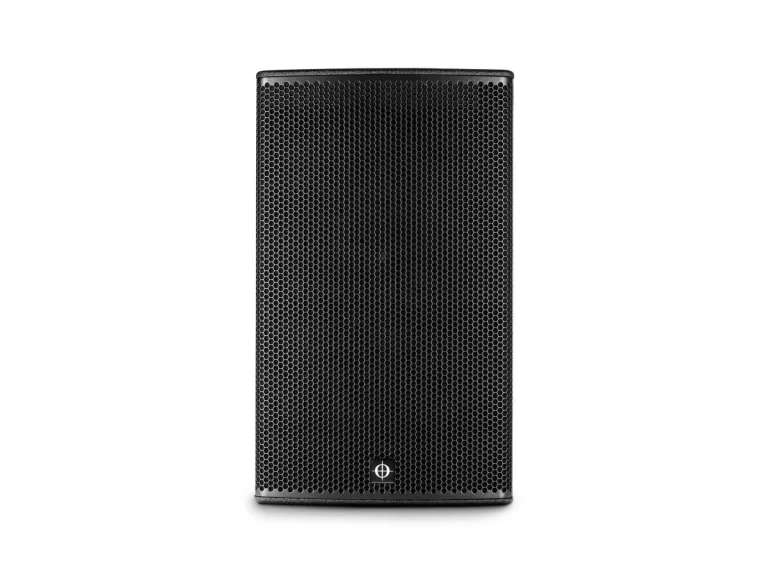

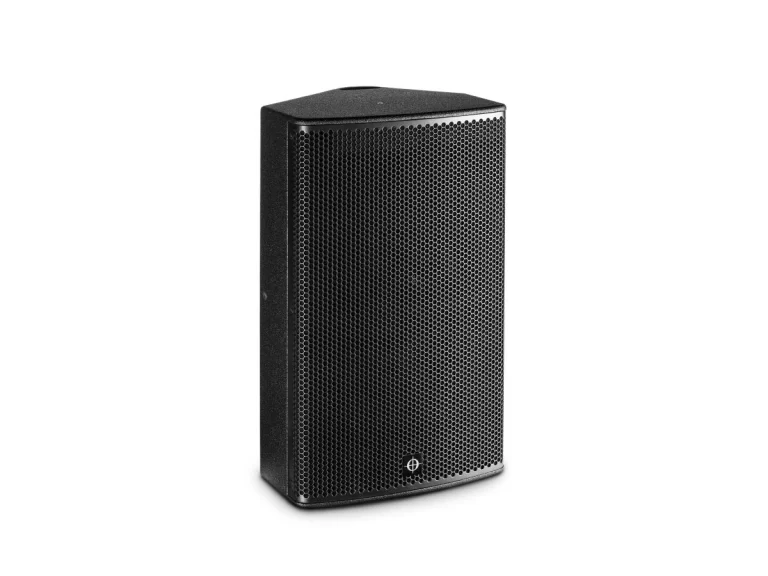

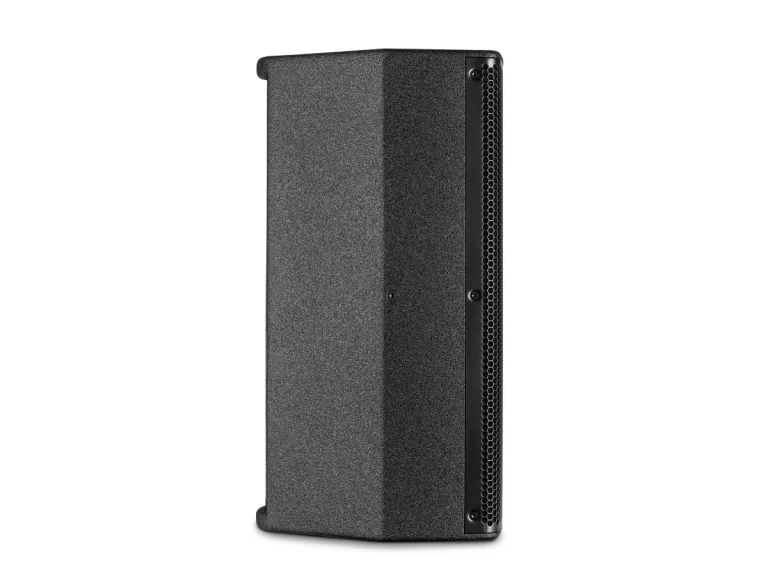

G515-Pro pasyvi kolonėlė - Digital Audio

Coda Audio
1809 €
CODA’s G-Series boxes are made with versatility in mind: full range systems that incorporate top end drivers; as a result, they’re suitable for a wide range of applications. The G500 Series includes the G512-Pro, G515-Pro, and the G-15 and G-18 subs. As is always the case with CODA, it all starts with the drivers: it’s a compact, smart 2-way system with wide dispersion, incorporating top quality patented annular 1-inch HF drivers, and ultra-low distortion neodymium woofers with a 3-inch voice coil and triple demodulation rings. The G515-Pro boasts a power handling of 600W and has a 15-inch neodymium cone driver, with a 1-inch compression driver on a 90° x 60° rotatable elliptical waveguide. These are no ordinary compression drivers, of course: the HF drivers contain CODA’s unique CuCup technology, which dramatically reduces intermodulation distortion, and in turn, deliver the most pristine and transparent audio. It’s also simple to mount these boxes on walls or ceilings thanks to its M6 flying points for optional U-brackets, making them a no-brainer for any touring or install application: they’re a great choice for bands, stage monitoring, DJs, clubs, and installations. Low end reinforcement comes courtesy of the compact G-15 and G-18 subs, with 15-inch and 18-inch neodymium ultra-low distortion woofers respectively. Both are high output, packing a serious punch at 1200W – the perfect partner to the two tops.
G515-Pro pasyvi kolonėlė

Techninė specifikacija:

Type
2-way full range system, multidesign enclosure

Application
High quality short throw or stage monitor

Frequency response
50 Hz – 21 kHz (-3 dB)

Power handling AES
600 W

Peak power
2400 W

Sensitivity
98 dB

Max. SPL peak (with LINUS10)
132 dB

Dispersion
90° horizontal / 60° vertical

Low frequency
15″ neodymium woofer, 3″ (77 mm) voice coil, 600W (AES)

High frequency
1″ neodymium compression driver, 1.75″ (44.4 mm) voice coil, 80 W (AES)

Crossover
1200 Hz passsive

Nominal impedance
8 Ω (+1/-1)

Input connectors
2x Neutrik™ NL4MP

Suspension
M6 threated points for use with optional U-bracket

Suspension G515-Pro
M8 threated points for use with optional U-bracket

Enclosure material
15 mm birch plywood

Finish G515-Pro
Polyurea coating

Dimensions (WxHxD)
420 x 700 x 380 mm

Net weight
17.5 kg
