DUO-NET PLAYER muzikos grotuvas - Digital Audio

Ecler
733 €

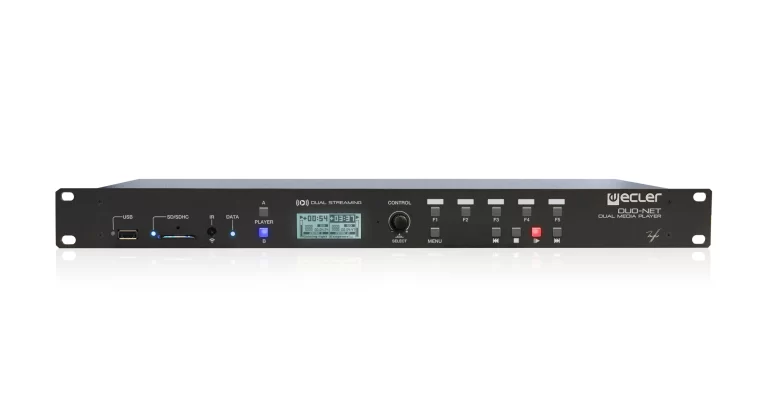

Dual Streaming & Media Audio Player

ECLER DUO-NET PLAYER is a double audio sound source that features full EclerNet compatibility (EclerNet Manager software, UCP control system, WPmSCREEN remote management, TP-NET third party integration protocol, etc.). It includes 2 independent stereo media players, each one being able to play Internet audio streams and local or networked audio media. DUO-NET PLAYER can be used as a stand-alone media player or integrated as a piece of a full EclerNet system, as well as coexisting with third-party devices.
DUO-NET PLAYER muzikos grotuvas

ETHERNET

Connector
RJ45

Speed
10/100Mbps

AUDIO OUTPUT

Nominal output level
+6dB (balanced) 0db (unbalanced)

Max Output Level/Minimum Load
+12dBV / 5k ohm

Freq. Response
5Hz - 24kHz (-3dB)

Balanced output header
4 x 3 pin terminal block

Output impedance
300 ohm

MEDIA PLAYER

Audio DAC
24bit / 48kHz

Output Noise Floor (FFT)
-100dB (from 20Hz to 20kHz)

THD + Noise
< 0.005% (1kHz, 1Vrms)

Compatible file formats
mp3, ogg, WAV, AAC, FLAC, OPUS

SOURCES
Network locations (Samba protocol); USB content; SD content; Internet Radio Streams

GPI

Number/input voltage
4 ports / 0 - 10VDC

Output header
6 pin Terminal block

RS232

SubD female connector 9 pin
TP-net protocol

MECHANICAL

Dimensions WxHxD
482.6x44x120mm

Weight
1800gr

USB and SD card interfaces

USB host interface
USB 2.0 High Speed (480 Mbps) Supports mass storage class devices (externally powered above 500mA current draw) Up to 2TB

Micro SD card interface
Supports SD ver1.0, SDHC Up to 32GB

FAT and files analysis
Supports FAT16, FAT 32 and VFAT Multi-partition up to 1; 65354 playable folders; 65354 playable folders within each folder; 65354 playable files within each folder

Playable extensions
mp3, wav, ogg, aac, flac
