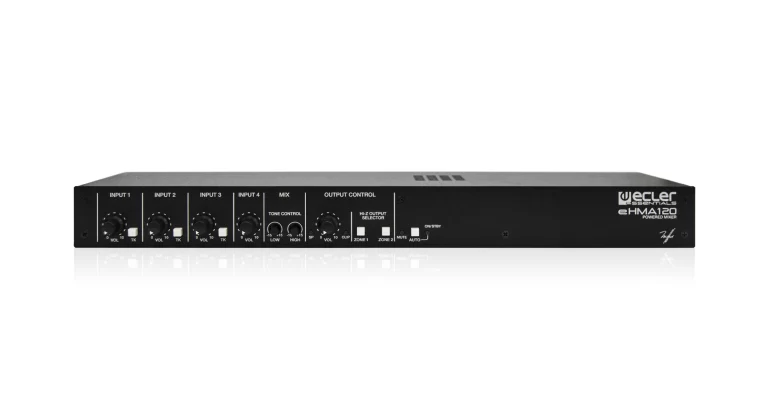

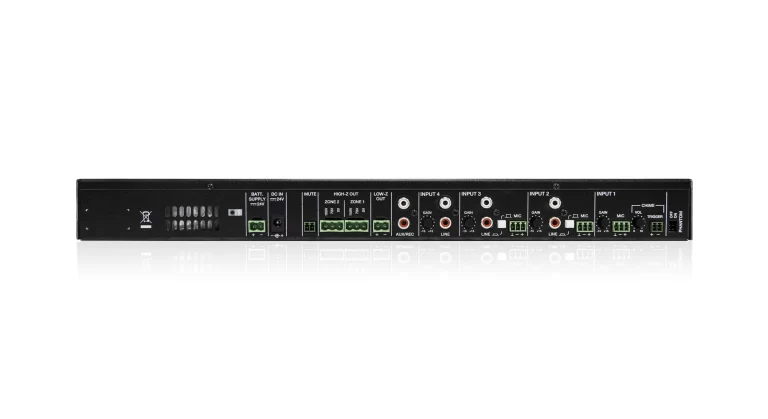

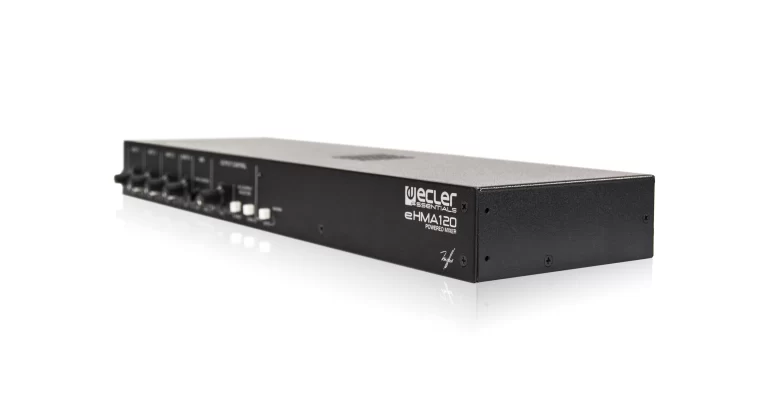

eHMA120 mikšeris su stiprintuvu - Digital Audio

Ecler
385 €

Powered Mixer

ECLER ESSENTIALS eHMA120 is a self-powered audio mixer including three MIC/LINE ST inputs and one LINE ST input. It features a 120W powered mono output that supports both low (4 Ω) and high impedance (70V, 100V) loudspeaker lines, with independent 2-ZONE ON/OFF switches (ZONE 1, ZONE 2). It also includes an audio priority system (voice messages, emergencies, etc.) available in 3 inputs, Pager and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and universal power supply unit, being compatible with external 24 VDC IN backup supply systems.

Key Features


  • 1 x 95W @ 4Ω
  • 1 x 95W @ 70V / 100V
  • 2 x ZONE ON/OFF selection switches
  • 1 ST LINE input
  • 3 MIC / LINE inputs, including Talkover function (priority)
  • 1 Pager port, including embedded Chime tone
  • 2-band EQ (BASS/TREBLE) for Mix Output
  • 24VDC external power supply included, with external battery backup connector
  • Auto Stand-by function
  • 24VDC Phantom Power (external switch)
  • MUTE port to remotely mute the unit from an external device, via dry contact closure.

Power output

Low Z output
95W @ 4Ω 1% THD

100V output
95W @ 100Ω 1% THD

Frequency response (HPF at 70Hz)
70Hz - 25kHz (-3dB)

THD+Noise @ 1kHz Full Power, Speaker Out, Line
<0.2%

Channel crosstalk @ 1 kHz
>65dB

Sensitivity / Nominal impedance

INPUT 2 LINE
-15dBV to + 15dBV / >10 kΩ

INPUT 3 LINE
-15dBV to + 15dBV / >10 kΩ

INPUT 4 LINE
-15dBV to + 15dBV / >10 kΩ

INPUT 1 MIC
-20dBV to -50dBV / >1 kΩ

INPUT 2 MIC
-20dBV to -50dBV / >1 kΩ

INPUT 3 MIC
-20dBV to -50dBV / >1 kΩ

CMRR

MIC (BAL)
>65dB @ 1kHz

Tone control (LINE & MIC)

BASS
100Hz ±15dB

TREBLE
10kHz ±15dB

Signal Noise Ratio (Gain at center, low Z output)

LINE
>85dB

MIC (BAL)
>75dB

Talkover (INPUT 1, 2 & 3)

Time
2 sec

Depth
-30dB

Power consumption

Pink noise, 1/3 power
64 VA / 58W

Standby mode (time 2 minutes)
<5W

Dimensions

Panel WxDxH (knobs excluded)
435x120x44mm

Weight
2.9kg
