SAM612T mikšeris - Digital Audio

Ecler
460 €

Installation Analogue Mixer

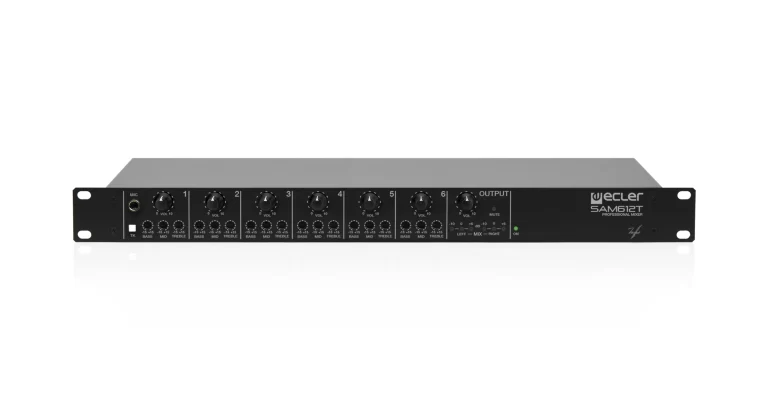

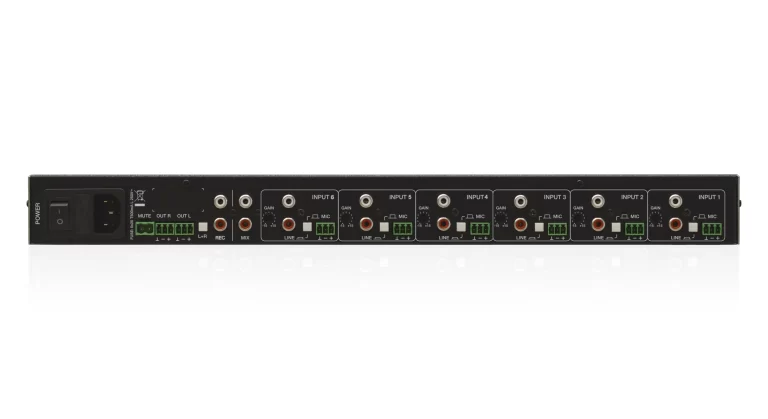

ECLER SAM612T is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs + 1 ST MIX input and 1 ST MAIN output + 1 ST REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.
SAM612T mikšeris

Inputs Sensitivity nom(*)/Impedance

IN 1-6 (LINE)
0dBV/50kΩ

MIX (LINE)
0dBV/10kΩ

IN 1-6 (MIC BAL)
-35dBV/>1kΩ

Input sensitivity adjust

IN 1-6 (MIC/LINE)
±15dB

Outputs Level/Minimum load

OUT
0(+6)dBV*/600Ω

REC
0dBV/10kΩ

Frequency response

LINE
10Hz-50kHz -1dB

MIC BAL
10Hz-30kHz -1dB

Harmonic distortion

LINE
<0.005%

MIC BAL
<0.04%

CMRR

MIC
>60dB@1kHz

Signal/Noise ratio

LINE
>100dB

MIC BAL
>85dB

Tone control

BASS
100Hz ±15dB

MID
2kHz ±15dB

TREBLE
10kHz ±15dB

Talkover

TIME
2 seconds

EFFECT
-30 dB

Dimensions

Panel
482.6x44mm

Depth
120mm

Weight
2.0kg
