SAM412T mikšeris - Digital Audio

Ecler
400 €

Installation Analogue Mixer

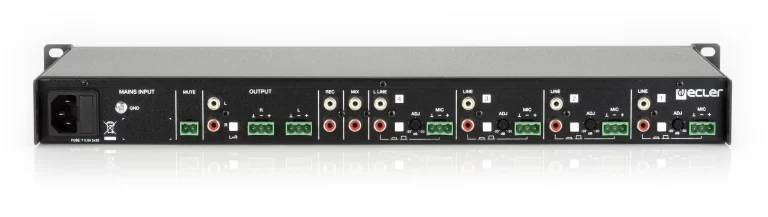

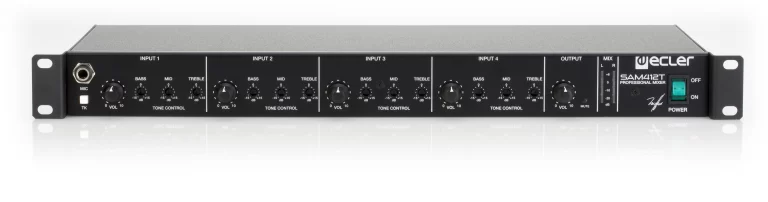

ECLER SAM412T is an installation mixer in standard rack format. It includes 4 MIC / ST LINE inputs, 2 stereo outputs, independent 3 band tone control per each input, Talkover (priority) function and external MUTE connection port.
SAM412T mikšeris

Inputs Sensitivity nom(*)/Impedance

LINE(1, 2, 3)
0dBV/50Ω

L LINE(4)
-5dBV / 50kΩ

MIC BAL
-50(-20)dBV/>1kΩ

MIX
0dBV>6Ω

Outputs Level/Minimum load

OUT 1 BAL
0(+6)dBV*/600Ω1(2)V

OUT 1 UNBAL
0(+6)dBV*/2.2kΩ 1(2)V

REC
0dBV/10kΩ

Frequency response

LINE
10Hz-50kHz -1dB

MIC BAL
10Hz-30kHz -1dB

Harmonic distortion

LINE
<0.01%

MIC BAL
<0.04%

CMRR

MIC
>65dB@1kHz

Signal/Noise ratio

LINE
>100dB

MIC BAL
>85dB

Tone control

BASS
100Hz ±15dB

MID
2kHz ±15dB

TREBLE
10kHz ±15dB

Talkover

TIME
1 / 2 / 3 seg

EFFECT
-30 dB

Dimensions

Panel
482.6x44mm

Depth
195mm

Weight
2.4kg
