eSAM702 mikšeris - Digital Audio

Ecler
363 €

Installation Analogue Mixer

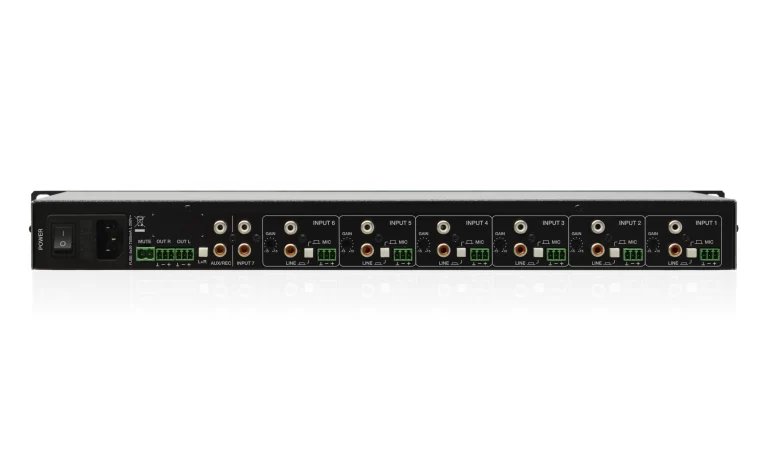

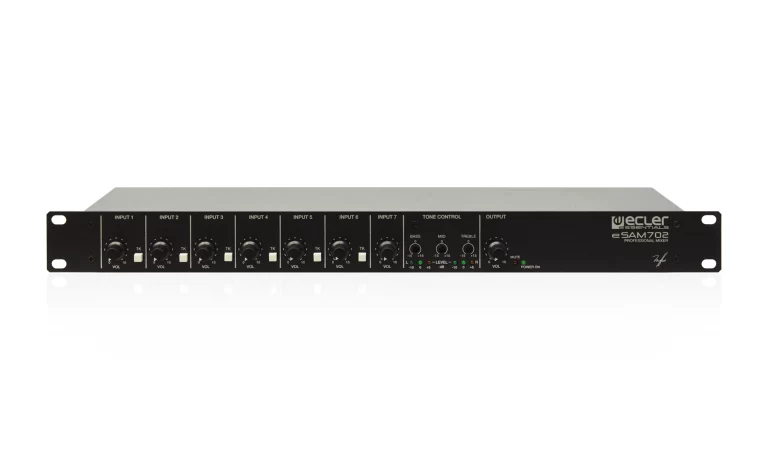

ECLER ESSENTIALS eSAM702 is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs, 1 LINE ST input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
eSAM702 mikšeris

Inputs Sensitivity (*) / Impedance

LINE (1-6)
0dBV / 50kΩ

LINE 7
-6dBV / 50kΩ

MIC 1-6 BAL
-35dBV/>1kΩ

Input sensitivity adjust

MIC/LIN 1-6
±15dB

Outputs Level / Minimum load

OUT
0(+6)dBV / 600Ω

AUX/REC
0dBV/10kΩ

Frequency response

LINE
10Hz-50kHz - 1dB

MIC BAL
10Hz-30kHz - 1dB

Harmonic distortion

LINE
<0.005%dB

MIC BAL
<0.04%dB

CMRR

MIC
>60dB@1kHz

Signal / Noise ratio

LINE
>110dB

MIC BAL
>85dB

Tone control

BASS
100Hz ±15dB

MID
2kHz ±15dB

TREBLE
10kHz ±15dB

Talkover

TIME
2 sec

EFFECT
-30dB

Dimensions

Panel
482,6x44mm

Depth
120mm

Weight
1,8kg
