eSAM603 mikšeris - Digital Audio

Ecler
378 €

Installation Analogue Mixer

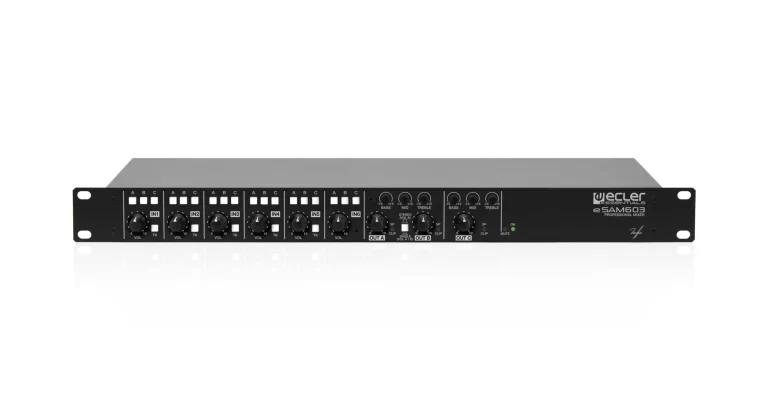

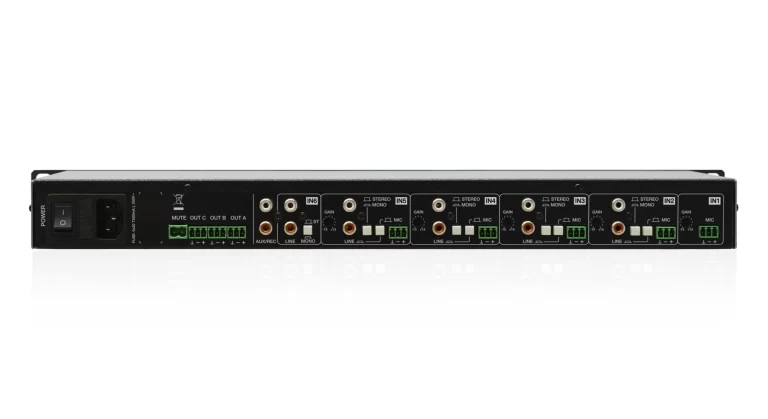

ECLER ESSENTIALS eSAM603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE ST inputs + 1 LINE ST input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
eSAM603 mikšeris

Inputs Sensitivity / Impedance

IN 1-5 (LINE)
0dBV / 50kΩ

IN 6 (LINE)
0(-6)dBV / 50kΩ

IN 1-5 (MIC/BAL)
-35dBV/>1kΩ

Input sensitivity adjust

IN 1-5 (MIC/BAL)
±15dB

Outputs Level / Minimum load

OUT
0(+6)dBV */ 600Ω

AUX/REC
0dBV/10kΩ

Frequency response

LINE
10Hz-50kHz - 1dB

MIC BAL
10Hz-30kHz - 1dB

Harmonic distortion

LINE
<0.005%dB

MIC BAL
<0.04%dB

CMRR

MIC
>60dB@1kHz

Signal / Noise ratio (gain+15dB)

LINE
>100dB

MIC BAL
>85dB

Tone control

BASS
100Hz ±15dB

MID
2kHz ±15dB

TREBLE
10kHz ±15dB

Talkover

TIME
2 sec

EFFECT
-30dB

Dimensions

Panel
482.6x44mm

Depth
120mm

Weight
2.1kg
