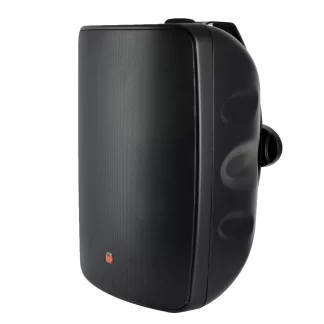

Lauko kolonėlė MX601

Quest Engineering
260
Not just another new speaker range, the MX Series is a system of audio building blocks that allows architects and venue designers to create a seamless full range audio presence, without compromising on aesthetics. The range is based around a 6” or 8”, two-way, full range, wall or ceiling mountable loudspeaker and can be augmented with a very compact subwoofer system. Ceiling speaker versions are also available. The Ultra-compact MX601 and MX801 loudspeakers are very low profile and feature Hi-Fi quality audio reproduction, withstand direct all-weather environments, and include an installation friendly mounting system that is both elegant and practical.

Revealing Details


The objective for the Engineers of the MX Series Indoor/Outdoor line-up was to take the compact wall mount speaker to a new standard of performance. This meant consulting with a wide range of venue and public space designers to determine what is needed in a modern designed architectural space. To achieve the desired outcomes a completely new approach to the design was required, both technically for the audio performance, and in developing new manufacturing techniques. The result is a refined appearance that fits visually into any environment, reproduces Hi-Fi quality music and speech; and is easy to install.

Techninė specifikacija:

Max SPL
108 dB

Sensitivity
91 dB

Frequency Response
80Hz – 20kHz ±2dB

Impedance
16Ω

Transformer Taping
100v: 10w/20w/30w/40w; 70v: 5w/10w/15w/20w

Amplifier Power
RMS 75W; Peak: 150W

Transducers
HF: 25mm Titanium Dome Tweeter; LF: 6” High Performance Polypropylene Woofer

Directivity *H x V
150° x 120° -10dB

Connections
Captive Screw Terminal Plug (In/Thru)

Environmental Ingress Rating
Speaker Cabinet IP56 (IP67 when used with IPMX1 kit)

Dimensions *H x W x D
303 x 184 x 175mm

Net Weight
3.5 kg
