TF-2 korekcinis stiprintuvas - Digital Audio

Bryston
1390

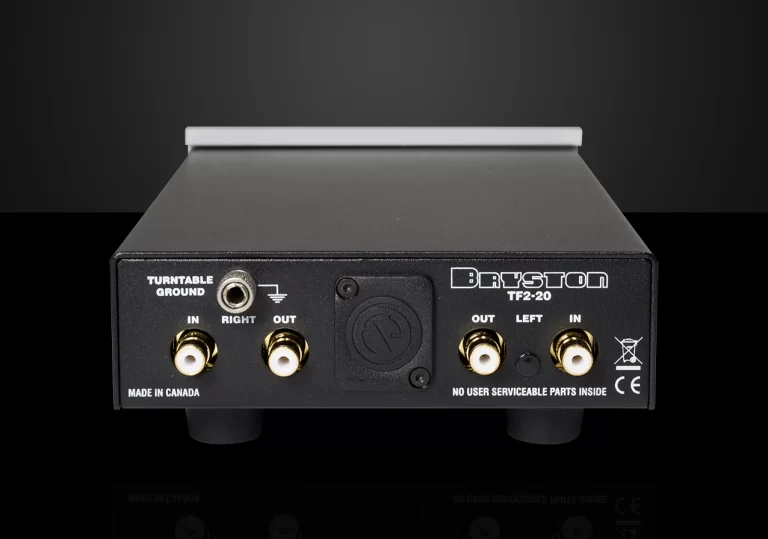

Low output moving coil cartridges are well loved for their detail and nuance, but need more gain than what most active preamps can provide. Too much active gain for these low-output carts introduces noise and distortion, so let your first gain stage be the TF-2 passive step-up transformer. The TF-2 adds 20 or 31dB of gain (choose at time of purchase), entirely with high quality wide bandwidth transformers and no active parts. Use the TF-2 with a Bryston BP-2 MM active gain stage or with your existing phono preamp. Inputs: 2x RCA, 1x Turntable Ground Outputs: 2x RCA

Features


– Fully passive transformer based step-up
– All steel chassis and top
– Wide bandwidth, very low phase shift
– Compatible with Bryston BP-2 MM and other active gain stages
– High common mode rejection of 120dB at 60Hz
– All steel chassis and top
– Low distortion

Techninė specifikacija:

Frequency Response -40dBu, 20Hz -20kHz
-0.5dB @ 20Hz; -0.1dB @ 20kHz

Gain
TF-2 20: 20dB; TF-2 30: 31dB

Sensitivity
TF2-20 0.5 mV; TF2-30 0.1 mV

THD @1kHz, -60dBu
<0.001%

Common Mode Noise Rejection
>120dB @ 60Hz

Output Impedance
TF-2 20: 4.71kΩ; TF-2 30: 4.85kΩ
