B135³ integruotas stiprintuvas - Digital Audio

Bryston
6490 7540

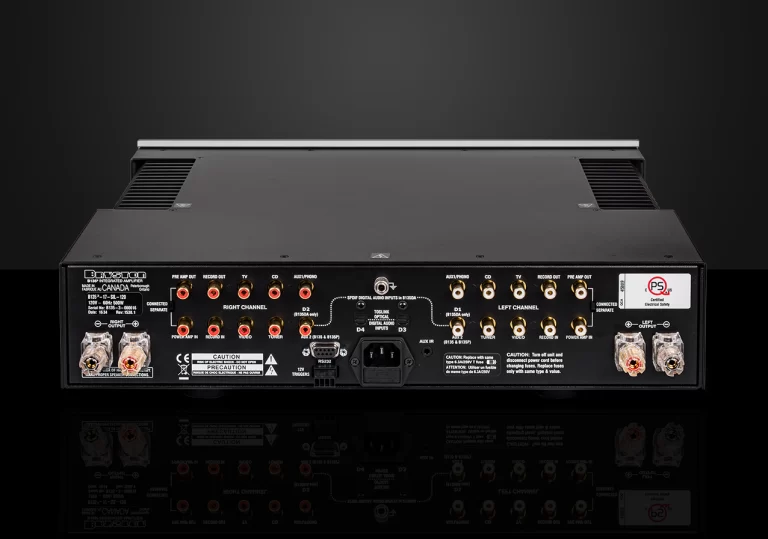

The Bryston B135³ Integrated Amplifier is without question one of the most sonically transparent and reliable audio products available. It offers performance levels equal to the finest separate audio components. Inputs: 6x RCA Single Ended Pairs, 2x RCA Single Ended Pairs (Record In, Power Amp In), 2x Optical (TOSLINK), 2x SPDIF (RCA) Outputs: 2x RCA Single Ended Pairs (Record Out, Preamp Out), Speaker Terminals, ¼” Headphone Jack Control: RS-232 (DB9), AUX IR, 2x 12V Output Triggers

Features


– 135W into 8 Ohms (180W into 4 Ohms)
– Over 30,000 MFD of filter capacitance per channel
– Three ultra-low-noise power transformers
– Separate ground paths for Digital and Analog
– Gold plated switch, contacts, and connectors
– Pre-out/main in connectors
– Convection cooled and housed in a fully aluminum chassis
– RS-232 serial data port for remote control via Crestron, AMX or similar control systems

Techninė specifikacija:

Power Output Per Channel
8Ω Load: 135W

Amplifier Gain
High: 29dB 28.28 V/V

Sensitivity (into 8Ω)
High: 1.0V 100W; High: 1.16V 135W

Input Impedance
Single Ended ≈30kΩ

IMD
60Hz + 7kHz 4:1 ≤0.005%

THD+N
20Hz-20kHz @ 135W, 8Ω ≤0.005%

Slew Rate
>60V / µS

Bandwidth
<1Hz to >100kHz

Damping
20Hz, 8Ω >500

Frequency Response
20Hz - 20kHz ±0.05dB

IMD or THD
<0.003%

High Level Sensitivity
500mV

Noise
-100dB (20Hz - 20kHz, ref. 1V input)

Weight
12 kg

Power Consumption (Watts)
2 Ch. 17W 8Ω: 210; 2 Ch. 135W 8Ω: 500 W
