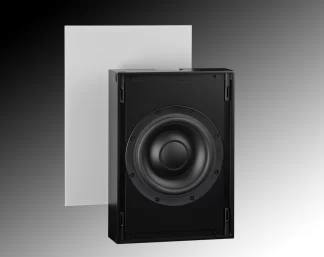

Įmontuojama žemų dažnių kolonėlė SUB600S

2540 €
Very dense bass reproduction with thundering impact and extraordinary musicality. With our SUB600 you will experience low frequency in a new dimension like never before. Its 2 x 23 cm (9″) long excursion drivers (32mm / 1 ¼” ) move more air than a traditional 30cm/12″ driver and much quicker as well (2 drivers versus one). Two SUB600 deliver more energy than a 15″ Driver with amazing precision and speed.
Įmontuojama žemų dažnių kolonėlė SUB600S

ATOHM LD230


The driver’s cone is a mechanical piece which reproduces the signal by oscillating around a rest point so the ideal driver has to move back and forth in a perfectly symmetric way.

During our long years of research and development in France, we have worked to optimize the following parameters to produce such high performance drivers. These optimized parameters are: symmetrical movement of the suspensions, symmetrical force factor of the magnetic field generated by the magnet, stability of the inductive value of the driver and heat dissipation. Thanks to the use of our ultra-powerful engine, the Atohm LD230 driver produces a fabulous bass extension, without any distortion and a phenomenal power handling.

KEY POINTS


High performance In wall Cinema subwoofer.

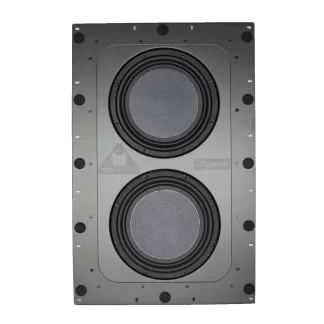

Equipped with 2 x 23 cm / 9” Atohm LD230 long excursion driver (32mm / 1.25” cone excursion)
To be installed behind an acoustically transparent screen.
Reduced depth: less than 20 cm / 7.90”
High Power handling*
High acoustic pressure
Low distortion (musical and acoustical low frequency)
Optimal performances teamed up with our S5OOEX amplifier

AUDIO APPLICATIONS


Luxury residential Home Cinema
To be associated to the other products and components of our Pro Custom series range
Suitable for rooms 25 to 100 m² / 270 to 10780 ft² depending on the number of subwoofer used

Techninė specifikacija:

TYPE
2 drivers, bass reflex

RECOMMENDED AMPLIFIER (WITHOUT CLIPPING)
400 to 600 W

PEAK POWER
800 W

IMPEDANCE (AVERAGE/MINI)
8 / 4 Ohms

EFFICIENCY (2.83V/1M)
90 dB

FREQUENCY RESPONSE (+/- 3 dB)
29 Hz - 150 Hz

BASS DRIVER
2 x 230 mm / 9“ Atohm LD230EX

DIMENSIONS (width x depth x height in mm)
570 x 197 x 875

WEIGHT
34 kg
