IC6CLASS-54 įmontuojama kolonėlė - Digital Audio

Ecler
205 €

EN54-24 In-ceiling /In-wall High-end Loudspeaker

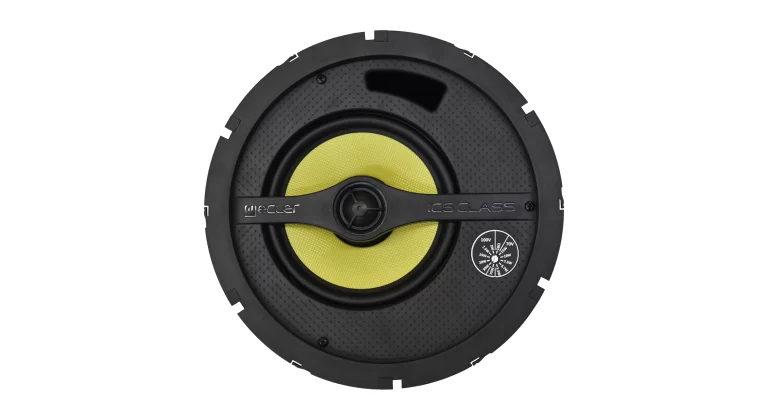

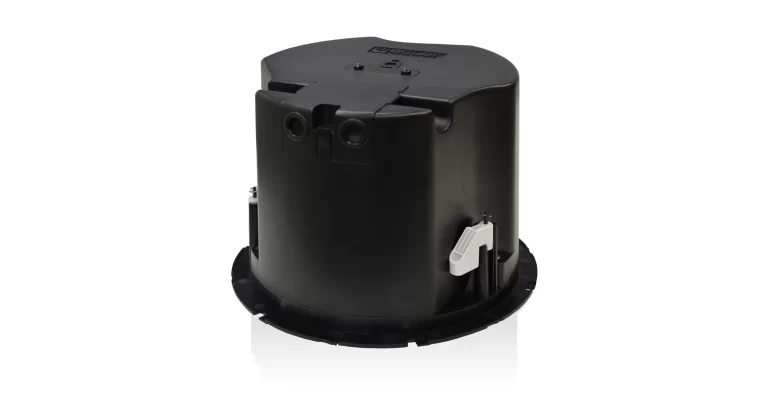

ECLER IC6CLASS-54 is a low and high impedance 2-way loudspeaker which features a design in accordance with EN54-24 standard (Fire detection and fire alarm systems, Voice alarms - Loudspeakers), including a fire rated back can, ceramic connection terminals, thermal fuse and Internal FR wiring. It integrates a very careful and efficient selection of components (6" woofer + 1" tweeter), together with a mechanical design that provide a high quality audio ("Hi-Fidelity" profile sound) and a very fast installation process, just using a basic set of tools.

Key Features


  • 2-way loudspeaker, 75 WRMS
  • 16 Ω impedance, allowing for multiple units connected in parallel to a standard audio amplifier
  • High impedance built-in transformer, allowing for multiple units connected in parallel to a 70V / 100V line audio amplifier (5 different power tappings available)

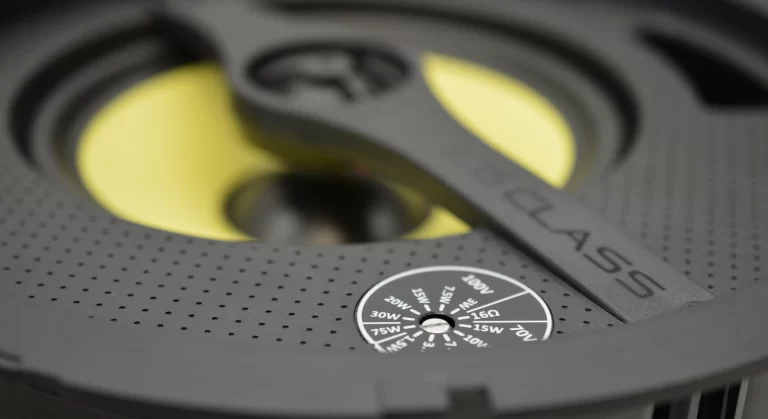

  • 16 Ω or high impedance power selection accessible from the front panel, once the loudspeaker is already installed in the ceiling
  • 6,5″ Kevlar® woofer
  • 1″ Silk dome (ACCW) tweeter

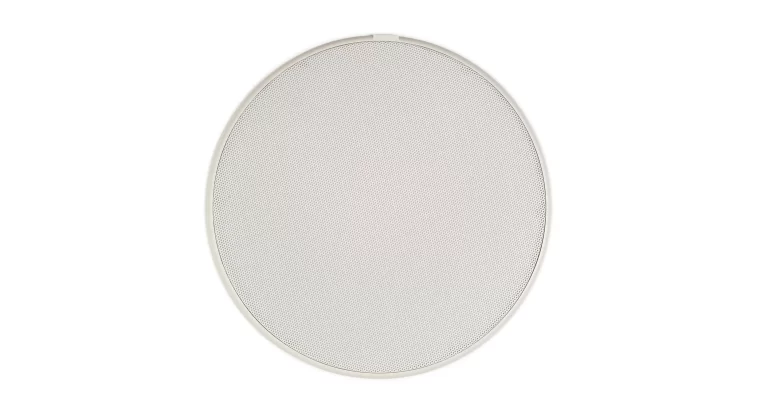

  • Aluminium front grill

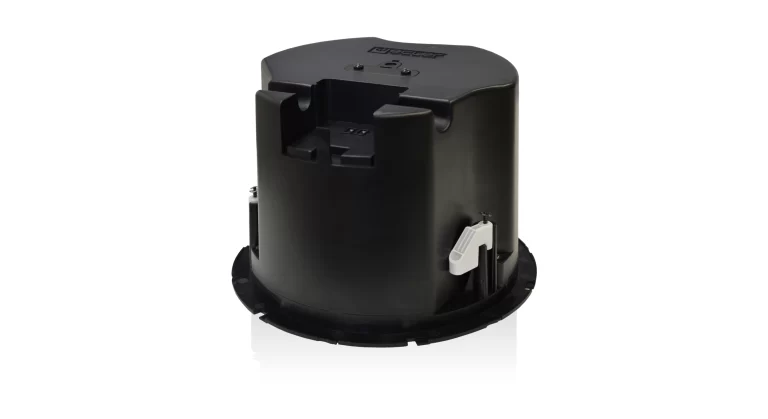

  • Fire rated back can.

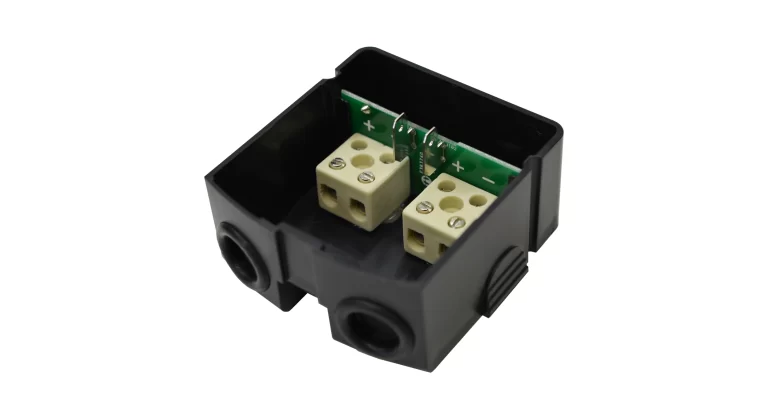

  • Ceramic connection terminals
  • Thermal fuse
  • Internal FR wiring
  • Fast installation procedure using a basic set of tools

Techninė specifikacija:

Nominal low impedance
16Ω

RMS power
75W

Power selector (70V)
1.5, 3.7, 7.5, 10, 15W

Power selector (100V)
3, 7.5, 15, 20, 30W

Frequency response (-6dB)
45Hz – 22kHz

Sensitivity 1W/1m
86dB

External diameter
270mm

Internal diameter
224,5mm

Recommended cut out diameter
227mm

Required depth
175mm

Weight
3,1Kg
