16 kanalų stiprintuvas The Director M6800

Audiocontrol
7879

Features:

  • Network DHCP Signal Matrix Amplifier With Volume Control
  • 16 Channels x 100 Watts at 8 Ohms (All Channels Driven)
  • 16 Channels x 200 Watts at 4 Ohms (All Channels Driven)
  • Bridgeable to 400 Watts of Bridged Power
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection

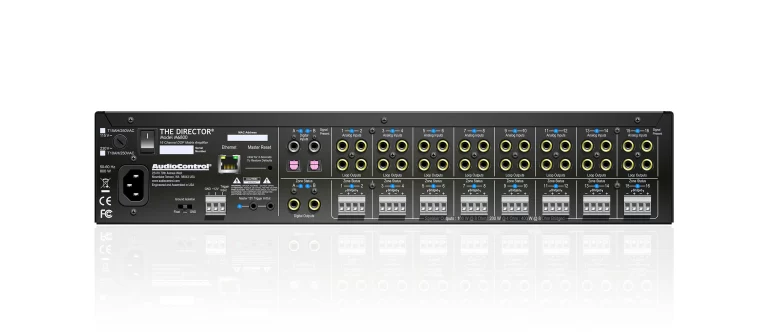

  • Local Inputs with Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Inputs
  • Compact 2U Rack Space (Includes Rack Mount Brackets)

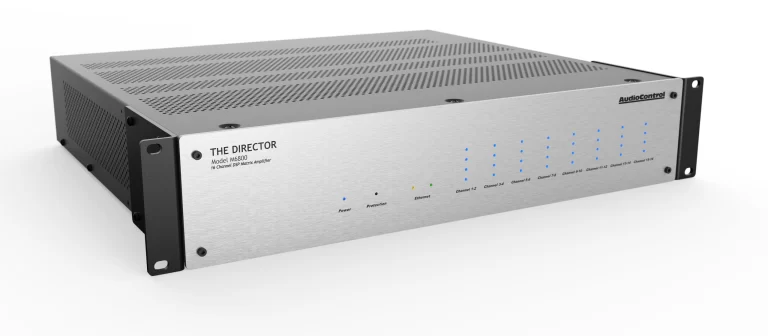

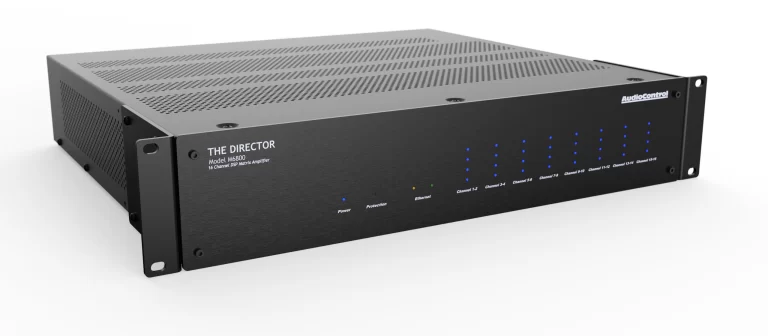

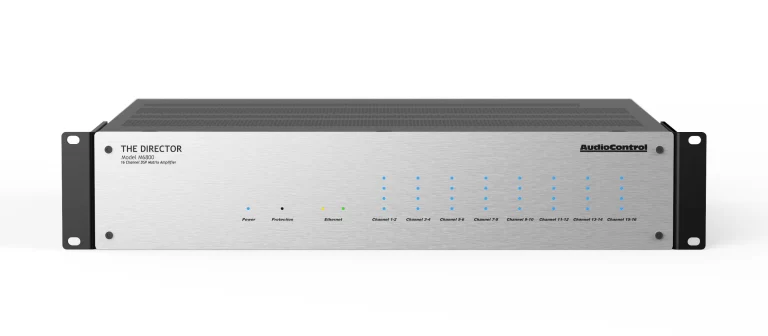

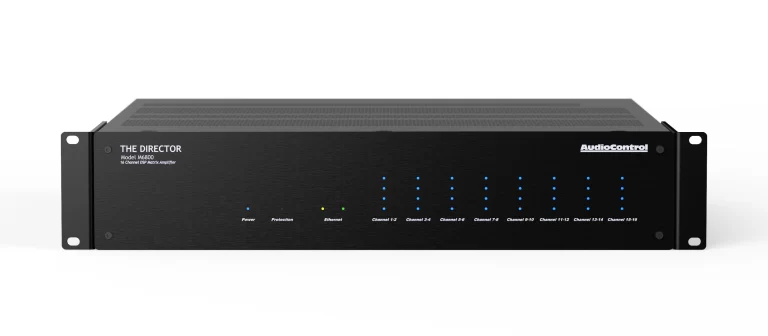

  • Available in Brushed Aluminum or Expresso Black
  • Home and Commercial Installations

16 channel high-power network dsp matrix amplifier


The Director® Model M6800 Matrix Amplifier from AudioControl is the first of its kind and one of the highest power, most flexible multi-zone amplifiers designed exclusively for the custom-install market. The Director® Model M6800 builds upon the success of AudioControl’s The Director® Series, driving 16-channels of high-power amplification in a compact 2U chassis, delivering over 100 watts per channel at 8 ohms, 200 watts per channel at 4 ohms and 400 watts at 8 ohms bridged, all channels driven.

Power and control at your fingertips


The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.

INPUTS

Inputs
8 Stereo Local Inputs, 2 Digital S/PDIF and Toslink Inputs

Input Sensitivity
1 Vrms for full output, level at maximum

Input Gain
30 dB

OUTPUTS

Amplifier Channels
16

Power Output (8Ω)
100W per channel

Power Output (4Ω)
200W

Power Output (8Ω Bridged Mono)
400W

Minimum Speaker Load

Preamp Audio Outputs
8 Stereo Loop Outputs, 2 Digital S/PDIF Outputs

PERFORMANCE

Crosstalk
> 80 dB @ 1 kHz

Damping Factor
>300

Signal to Noise
>95 dB, A-wtd, ref full output

DAC Specifications
32 – 96 kHz sample rate, 16/24 bit depth

CONTROL

Remote Power Trigger
+12 VDC or Dry Contact Closure

Network Connection/Protocol
10BaseT Ethernet TCP/IP

Communication Protocol
HTTP or Telnet

WEIGHTS & DIMENSIONS

Dimensions
17” W x 15.5” D x 3.5” H (2U)

Weight
21.0 lbs (9.5 kg)
