BHA-1 ausinių stiprintuvas - Digital Audio

Bryston
2290

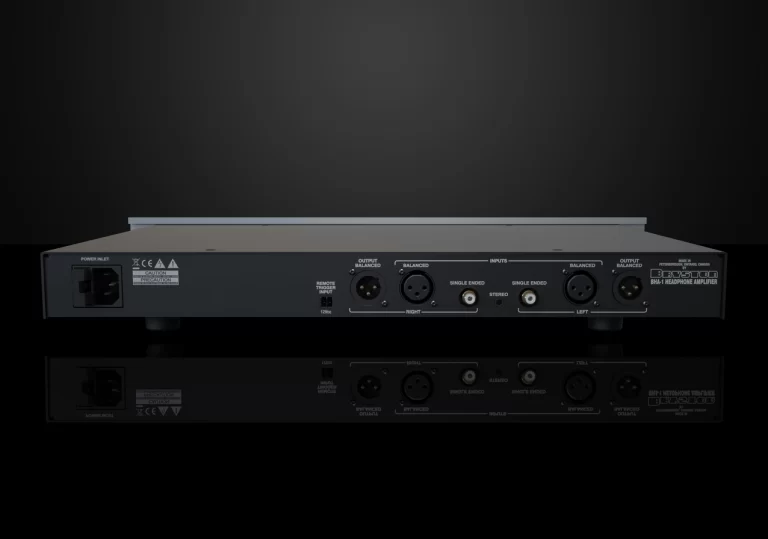

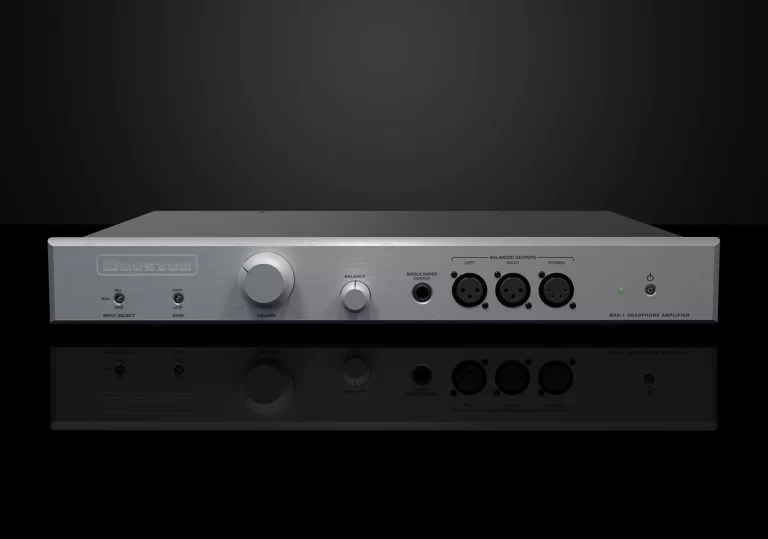

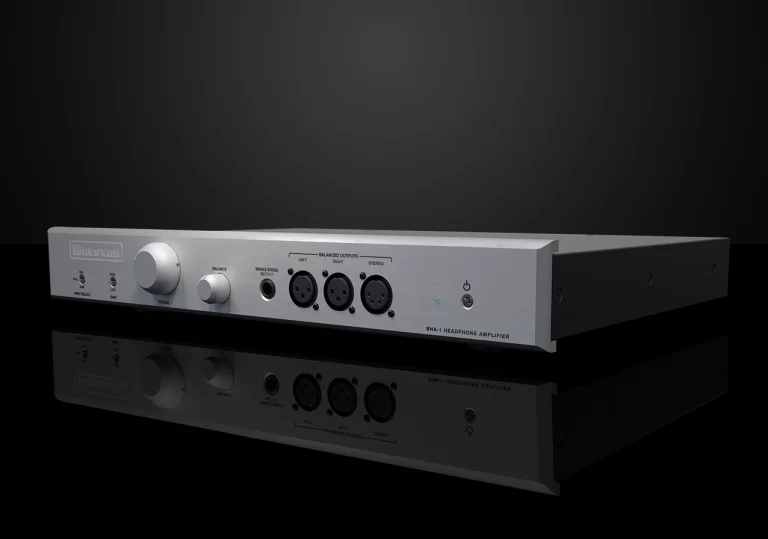

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston’s reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones. Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.) Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼" Headphone Jack Control: Remote Trigger Input ( 5 - 12V AC/DC @10mA)

Features


– Balanced outputs
– Balanced dual mono circuitry
– Left/Right balance control
– Six fully discrete Class A Bryston operational amplifiers
– 14dB or 20dB gain
– 10k input impedance
– High quality noble stereo volume control (laser trimmed)
– Gold plated input and output connectors
– Multiple headphone drive capability

Techninė specifikacija:

POWER OUTPUT
Maximum: 2 Watts per channel into 32 Ohms at 1% THD; Rated: 500 milliwatts per channel into 32 Ohms at .005% THD

INPUT IMPEDANCE
10K ohms single ended (unbalanced); +15K/-5K ohms double ended (balanced)

THD+noise
< 0.005% 20 Hz to 20 kHz

IMD
< 0.001% 60 Hz + 7 kHz mixed 4:1

NOISE
>103 dBv (with 20 Hz to 22 kHz band pass filter)

FREQUENCY RESPONSE
20 Hz to 20 kHz @ ± 0.1 dB

POWER BANDWIDTH
<1 Hz to over 100 kHz

POWER CONSUMPTION
50 Watts

HEAT LOAD
130 BTU/hr

WEIGHT
5.3 kg
