IB2S XBD-A aktyvūs studijos monitoriai - Digital Audio

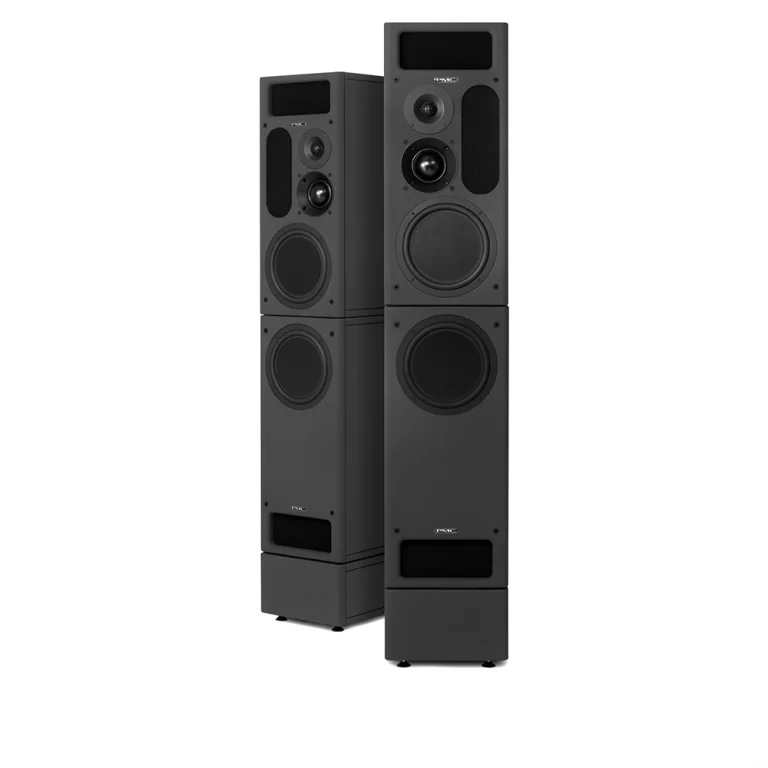

The IB2S XBD-A, offer discerning users the attributes of PMC’s large ATL™ reference active monitors in a more compact form, creating the ideal monitors for high-end reference monitoring and mastering applications. The three-way IB2S-A master cabinet together with the single-driver XBD bass cabinet to form the IB2S XBD-A system, following the pattern established by the popular BB5-XBD-A reference monitor. The XBD bass unit adds +3dB of low-frequency headroom, makes for a smoother room reponse and allows users to drive even larger acoustic environments. Where an independent .1 sub channel monitor is required, an additional XBD active unit is the ideal solution.
380Hz & 3.8kHz
H 1480mm 58.27” W 330mm 13.0” D 549mm 21.6”; Plinth H 190mm 7.48" W 330mm 13.0" D 520mm 20.47"
HF 34mm Soft Dome Tweeter 200W; MF 75mm soft Dome Midrange 200W; LF 250mm/10” PMC Carbon Fibre /Nomex™ piston driver; XBD cabinet: LF 250mm/10” PMC Carbon Fibre /Nomex™ piston driver
Effective ATL™ Length
Input Impedance 20k Bal

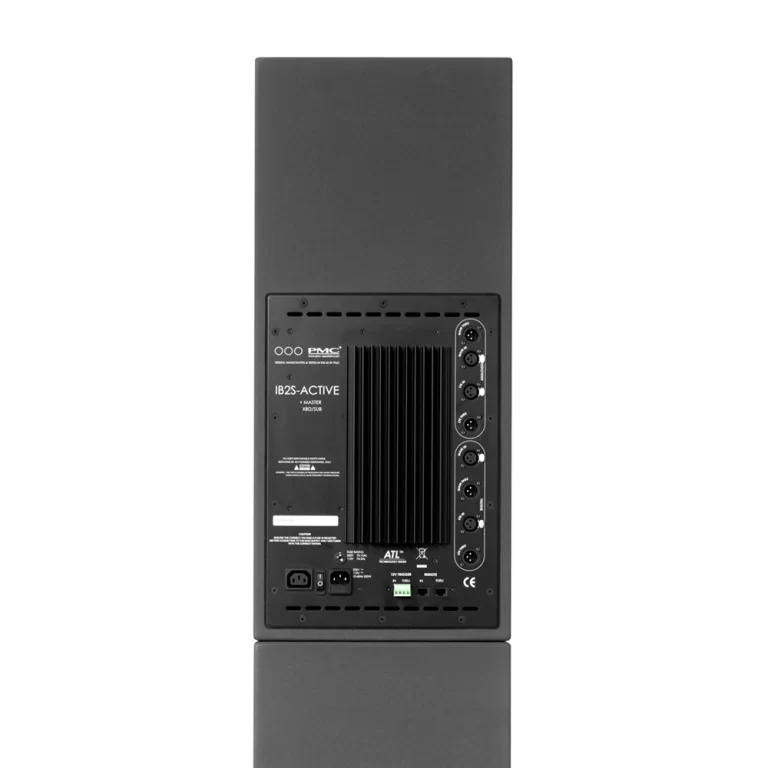

I/O: Balanced Analogue Main Input/Through Balanced Analogue LFE Input/Through Digital AES3 Main Input/Through Digital AES3 LFE Input/Through
Adjustable +4 to +20dBu
Weight: 93kg 204.6lbs
Amplifier Power per
LF 565W; LF (XBD) 656W
