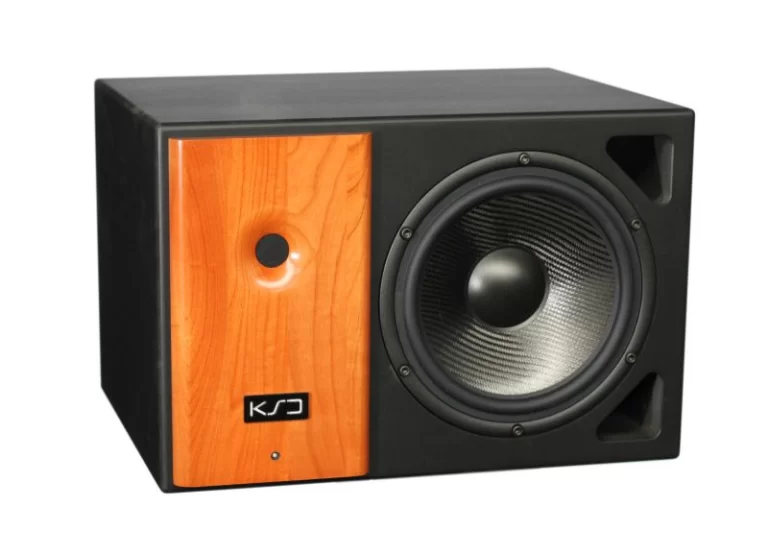

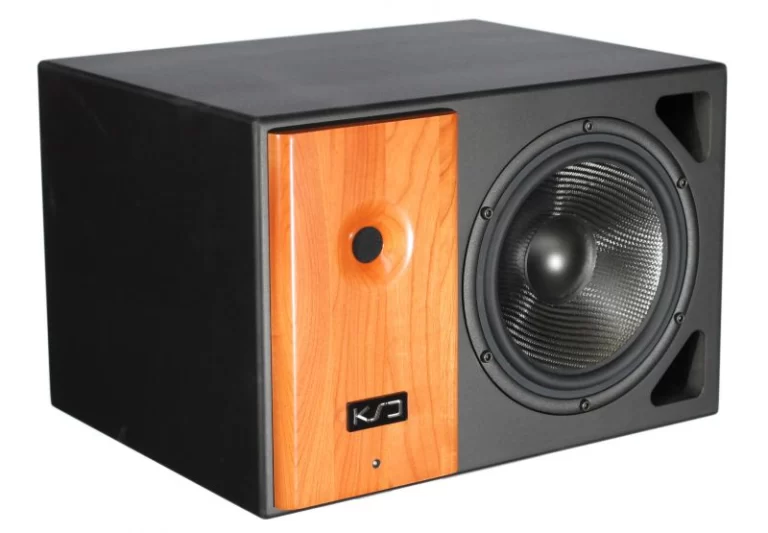

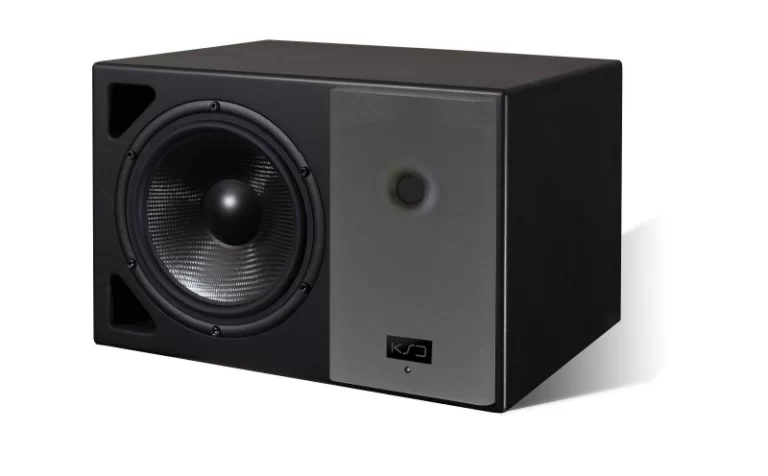

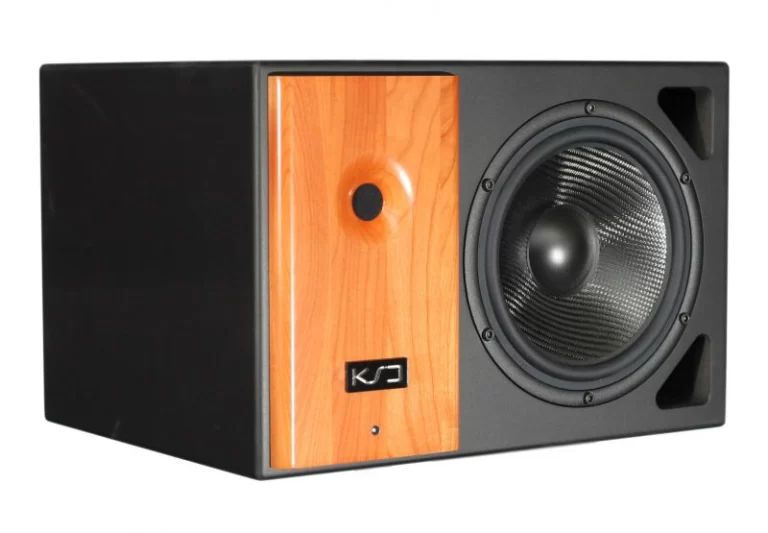

ADM22 MK2 studijos monitorius

KS Digital
The ADM22 represents a complete upgrade of the legendary ADM 20, the first digital, linear phase studiomonitor worldwide. In this upgrade, all important reproduction functions of the ADM20 were taken over andfitted to the new cabinet. Therefore the ADM22 also processes the signal digitally with its own DSP platform.

Our patented FIRTEC system filters ensure a linear phase, and a correctly timed reproduction across theentire frequency range. The wave guide eliminates the effect of the cabinet edges and linearizes not only theprocessing of the digital signal but also the frequency characteristics. The 1” high frequency ring emittersensure low distortion even at high volumes. The 8” carbon chassis (made in Germany) with its optimized stiffbut low weight membrane (F1 material), prevents a break-up into partial oscillations at high volumes, so thatthe compact ADM22 represents a full value monitor for all applications. The 24 bit / 192 Khz DA convertersupplies the analogue output stage with its special audio 180W (RMS) transistors.

The optional digital input (bypassing the DA converter) facilitates a direct connection to the digital work stationor master machine. Three freely configurable peak-EQs as well as high and low shelving controls permit anoptimized adjustment to the listening position in a studio. These as well as all other parameters, such as vo-lume or delay can be comfortably adjusted with optional FIR-Wlan software either from a tablet, smartphoneor with the hardware remote control RC-100.

Techninė specifikacija

AD / DA converter
24 bit sigma delta, 64 x oversampling

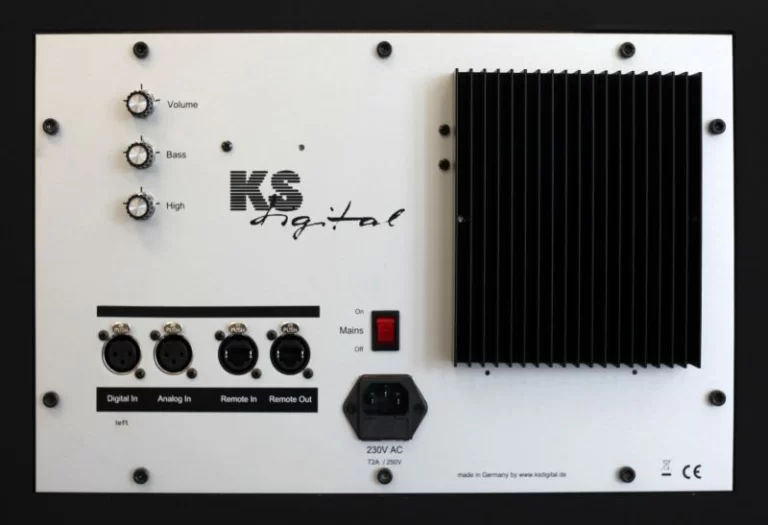

Digital IN, OUT
AES3 format , 32 – 192KHz

Analog IN, OUT
XLR-symmetric, active bypass connector

FIRTEC™ equalization, FIR-crossover, limiter, 6 user filter patent: 19823110

Room equalization
5 peakfilter and FIRTEC™ system equalization

1'' radiator, 8'' carboncone

250 W / 250 W peak

116dB cont./124dB peak

Remote control

Frequency range
35 - 22000 Hz (+/- 3 dB)

42 X 30 X 31 cm 12 kg
