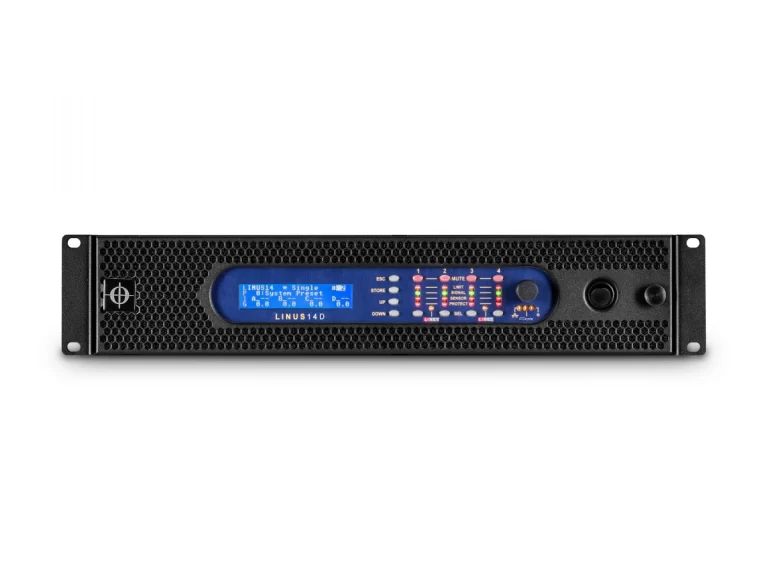

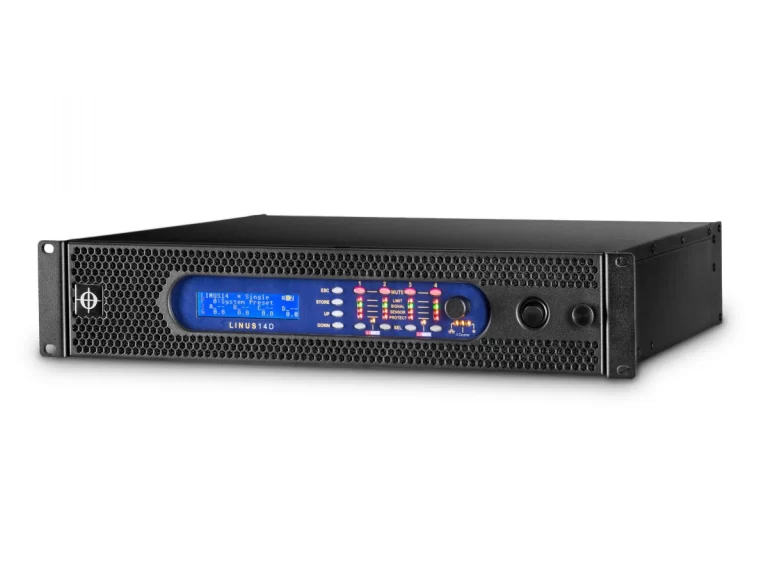

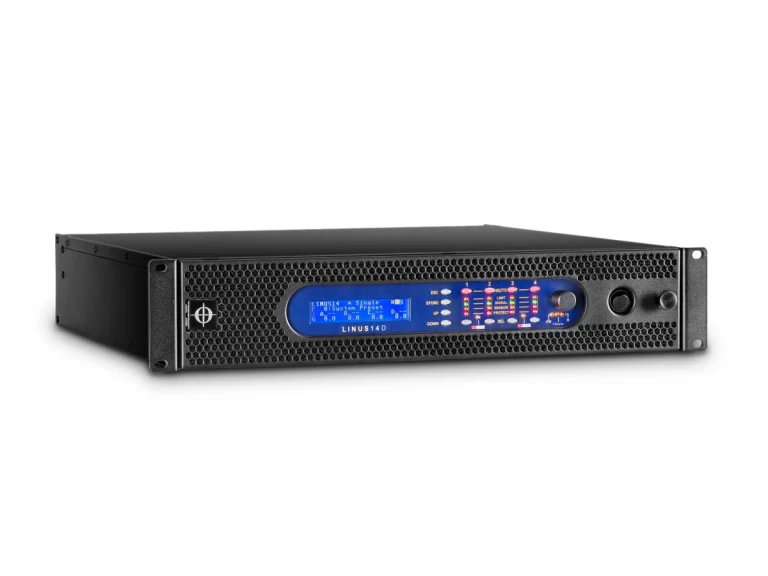

The LINUS14D is a four channel DSP, network, comparator and amplifier delivering 4x 3500 W of clean power in a light weight 19”/2U package. The 4 audio inputs are selectable from Analog, LiNET digital audio or DANTE audio network and are routable to any of the 4 outputs via the input matrix.
LINUS14D ENGINE – the class D-IC output stage topology delivers audiophile sonic accuracy with enormous headroom providing significant improvement of the system performance in dynamics and transparency.
LINUS CORE – the SHARC floating point DSP processor ensures tremendous processing power enabling the integration of sophisticated audio algorithms. The advanced signal processing includes IIR and phase linear FIR filters for perfect linearity and superior sound performance as well as advanced look-ahead and frequency dependent limiters for increased system headroom and sonic fidelity under heavy use conditions.
LiNET – is a robust, redundant audio transport solution that transmits digital audio over a standard CAT5 cable. Up to 8 digital audio signals can be sent to each amplifier via LiNET, buffered and sent to the next unit via the LiNET link out for daisy chaining. The signal routing inside the LINUS14D can be done remotely or using the pushbuttons on the front panel.
DANTE – transmits digital audio over an Ethernet based network.
COMPARATOR – the LINUS14D provides integrated feedback loop control for sensor controlled subwoofers. The unit has four sensor inputs connected to two 5-pol Neutrik XLR input. The comparator’s electronic circuit loop measures the voice coil movement and adjusts the amplifier driving voltage and/or current to correct any driver inaccuracy. It is a closed feedback-loop and therefore self-optimising system in which the driver confirms precisely the power it needs to produce exactly the original audio signal. The key advantage is a very extended and controlled response. Any distortion produced by the driver or the enclosure is instantly corrected by the feedback.
AUX – integrated evacuation massage contact in accordance with DIN EN 60849.
LINUS LIVE – Ethernet based graphical user interface for fast and flexible system configuration, tuning and control.
4 inputs (analog, LiNET, DANTE) routable to any of the 4 outputs
Max Input level
Output noise (analog input)
< -108 dB (unweighted) / -111 dB (A-weighted)
Output noise (digital input)
< -116 dB (unweighted) / – 119 dB (A-weighted)
(20 Hz – 20 kHz) + /-0.2 dB at 4 Ohms
THD+N, IMD (20Hz – 20kHz)
< 0.005%, 4 Ohms P/2
> 10.000 @ 1 kHz / 8 Ohm
Analog Devices Sharc DSP
96 kHz / 32 bit floating point
110 Factory and 20 User presets
OUTPUT POWER (Peak power / 6 dB Crest Factor on each channel)
4x 3600 W
4x 7000 W
4x 5200 W
4x 1800 W
4x 3500 W
Power on/off switch
provide front panel control
Signal, Clip, Protect LEDs
4x – disconnected sensor (red)
Input signal detection LEDs
analog, LiNET, DANTE

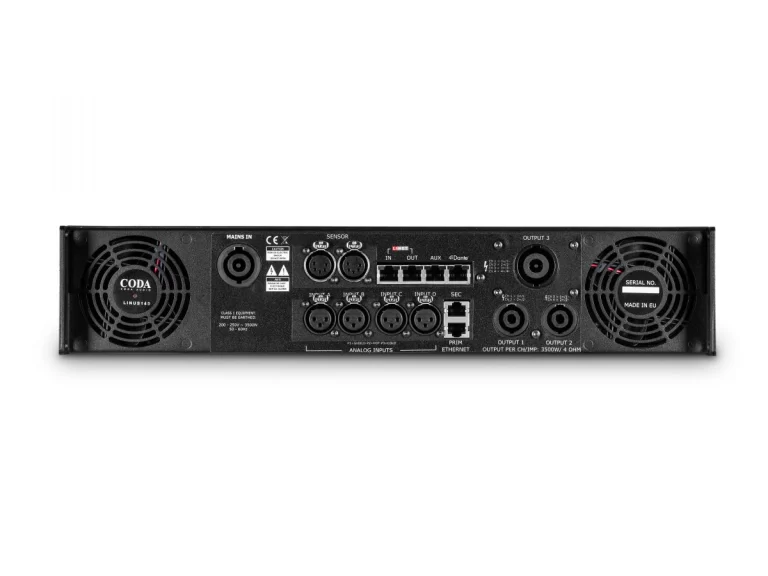

Balanced analog inputs
LiNET daisy-chain link
LINUS LIVE (User interface)
LINUS LIVE (daisy-chain link)
2x XLR/F – 5Pol
2x NL4, 1x NL8
Neutrik™ PowerCon 32A
483 x 88.9 x 453 mm
