eGPA4-150 4 kanalų stiprintuvas - Digital Audio

Ecler
510 €

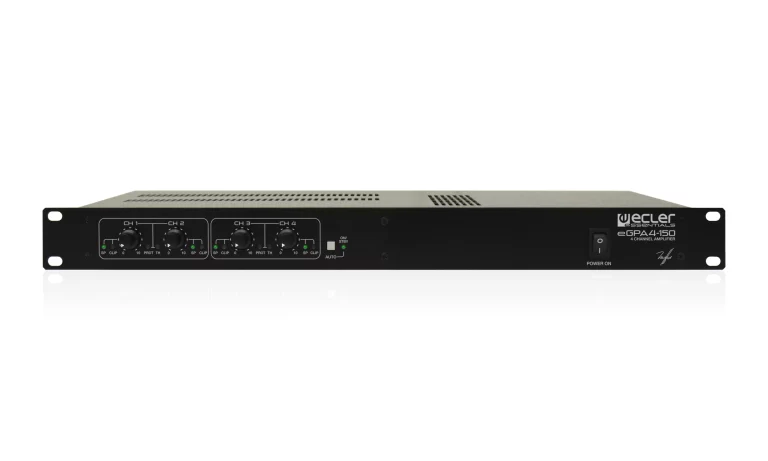

Multichannel Amplifier

ECLER ESSENTIALS eGPA4-150 is a 4x150 W RMS @ 4 Ω, high efficiency multichannel amplifier (class D). Auto stand-by function and fanless design, 100% silent. Thermal and overload protections. Anti-clip system.

Key Features

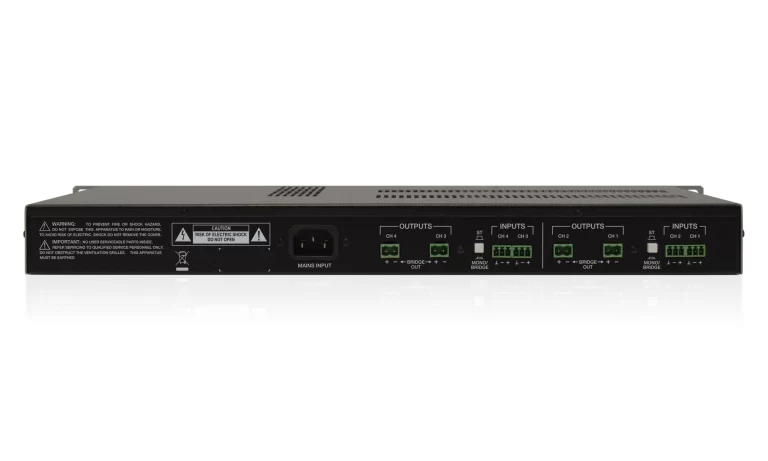

  • 4 analogue audio inputs x 4 powered audio outputs
  • Euroblock input and output connectors
  • High efficiency, auto standby function and convection cooling (fanless, 100% silent)
  • BRIDGE mode ready
  • Thermal protection
  • Overload protection
  • Anti-clip system

POWER 20-20kHz 1% THD

1 Channel @ 4Ω
148 WRMS

1 Channel @ 8Ω
74 WRMS

All Channels @ 4Ω
145 WRMS

2 Bridged Channels @ 8Ω
290 WRMS

Frequency response (-1 dB, -3dB)
20Hz - 25kHz

Filter (High-Pass) 3rd order Butterworth
15Hz

THD+Noise @ 1kHz Full Power
<0.05%

S+N/N 20Hz - 20kHz @ 1W/4Ω
>85dB

CMRR
>55dB

Damping factor 1kHz @ 8Ω
>150

Channel crosstalk @ 1kHz
>55dB

Input Sensitivity / Impedance
0dB/>20kΩ

Anticlip @ 2dBV input
<1% THD

Power consumption

pink noise, 1/3 power @ 4Ω
268W

Idle
29W

STBY
18W

Dimensions (Handle excluded)
440x44x221mm

Weight
3.70kg
