The Director M6400 16 kanalų stiprintuvas

Audiocontrol
6489

Features:

  • Network DHCP Signal Matrix Amplifier With Volume Control
  • 16 Channels x 65 Watts at 8 Ohms (All Channels Driven)
  • 16 Channels x 100 Watts at 4 Ohms (All Channels Driven)
  • Bridgeable to 175 Watts of Bridged Power
  • Digital Signal Processing (DSP) Performance
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications • Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Local Inputs with Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Inputs
  • Compact 2U Rack Space (Includes Rack Mount Brackets)

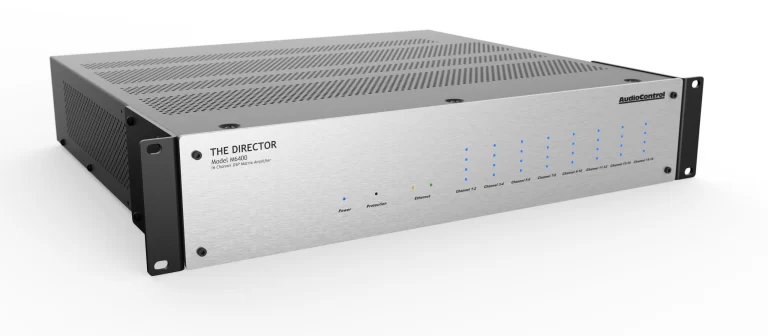

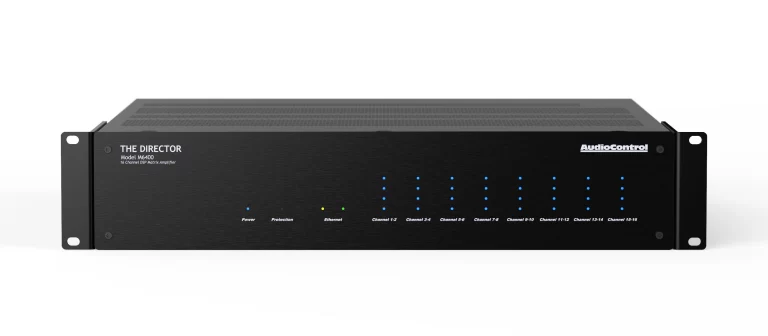

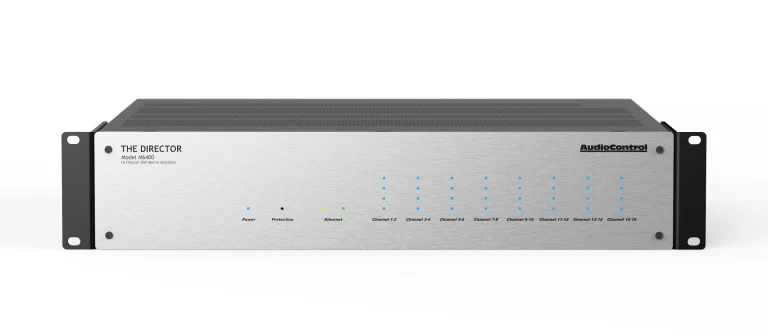

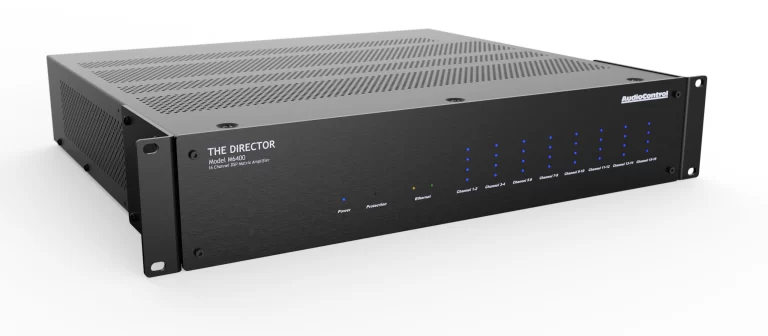

  • Available in Brushed Stainless Steel or Expresso Black
  • Home and Commercial Installations

16 channel network amplifier with signal matrix & volume control


The Director® Model M6400 Matrix amplifier from AudioControl is the first of its kind and one of the most intelligent, flexible amplifiers available for residential or commercial projects.


The Director® Model M6400, part of AudioControl’s new Matrix M-Series builds upon the success of AudioControl’s ‘The Director’ D-Series driving sixteen channels of high-power amplification in a compact 2U chassis that delivers 65 watts per channel at 8 Ohms, 100 watts per channel at 4 Ohms and 175 watts at 8 Ohm bridged, all channels driven.


Featuring a powerful on-board DSP, The Director Model® M6400 has the benefit of operating either as a standalone matrix-amplifier or as part of a 3rd party control system from companies including Crestron, Savant or Control 4.

Power and control at your fingertips


The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.

INPUTS

Inputs
8 Stereo Local Inputs, 2 Digital S/PDIF Inputs

Input Sensitivity
1 Vrms for full output, level at maximum

Input Gain
27 dB

Amplifier Channels
16

Power Output (8Ω)
65W per channel

Power Output (4Ω):
100W per channel

Power Output (Bridged Mono)
175W

Minimum Speaker Load

Preamp Audio Outputs
8 Stereo Loop Outputs, 2 Digital S/PDIF Outputs

PERFORMANCE

Crosstalk
> 80 dB @ 1 kHz

Damping Factor
>200

Signal to Noise
>95 dB, A-wtd, ref full output

DAC Specifications
32 – 96 kHz sample rate, 16/24 bit depth

CONTROLS

Remote Power Trigger
+12 VDC or Dry Contact Closure

Network Connection/Protocol
10BaseT Ethernet TCP/IP

Communication Protocol
HTTP or Telnet

GENERAL

Power Consumption (Stand By)
<2W

Power Consumption (Idle)
35W

Power Consumption (loud listening level)
220W

Power Consumption (maximum)
1300W

BTU/Hour Heat Dissipation (Standby)
6.8

BTU/Hour Heat Dissipation (Idle)
121

BTU/Hour Heat Dissipation (loud listening level)
314

BTU/Hour Heat Dissipation (maximum)
890

Protection
clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads

WEIGHTS & DIMENSIONS

Dimensions
17” W x 15.5” D x 3.5” H (2U)

Weight
16.0lbs (7.26 kg)
