100V 4 kanalų stiprintuvas eHSA4-150

Ecler
800 €

High Impedance Multichannel Amplifier

ECLER ESSENTIALS eHSA4-150 is a multichannel amplifier with high impedance powered outputs. A very high efficiency and its auto stand-by function provide this amplifier with a true green profile

Key Features


  • 4 analogue audio inputs and 4 x150 WRMS @ 70V / 100V powered audio outputs

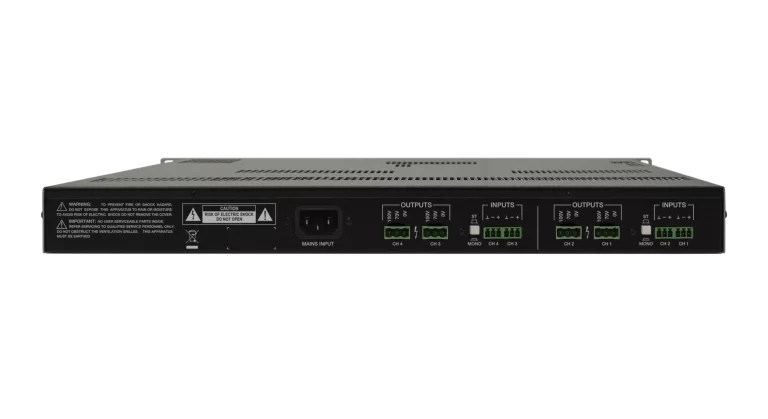

  • Euroblock input and output connectors
  • High efficiency, auto stand-by function and convection cooling (fanless, 100% silent)
  • Thermal protection
  • Overload protection
  • Anti-clip system

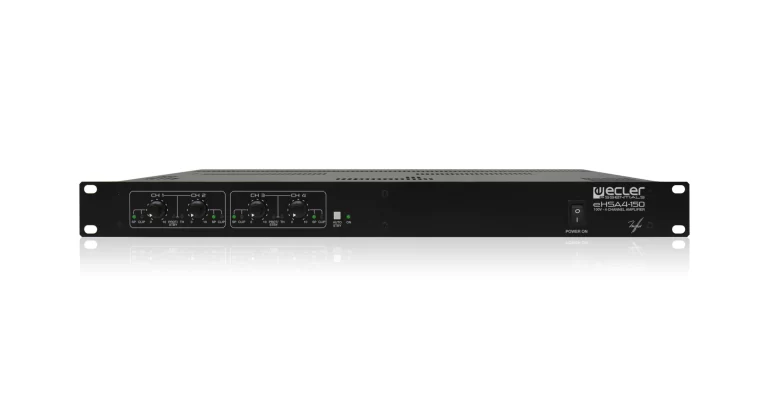

  • Volume control knobs on front panel

POWER @ 1kHz 1% THD, 100V output

1 Channel @ 66Ω
145 WRMS

All Channels @ 66Ω
140 WRMS

Frequency response (-1 dB, -3dB)
20Hz - 30kHz

Filter (High-Pass) 3rd order Butterworth
50Hz

THD+Noise @ 1kHz Full Power
<0.05%

S+N/N 20Hz - 20kHz @ 1W/4Ω
>85dB

CMRR
>55dB

Damping factor 1kHz @ 8Ω
>150

Channel crosstalk @ 1kHz
>55dB

Input Sensitivity / Impedance
0dB/>20kΩ

Anticlip @ 2dBV input
<1% THD

Power consumption

pink noise, 1/3 power @ 4Ω
268W

Idle
29W

STBY
18W

Dimensions (Handle excluded)
440x44x341mm

Weight
10.50kg
